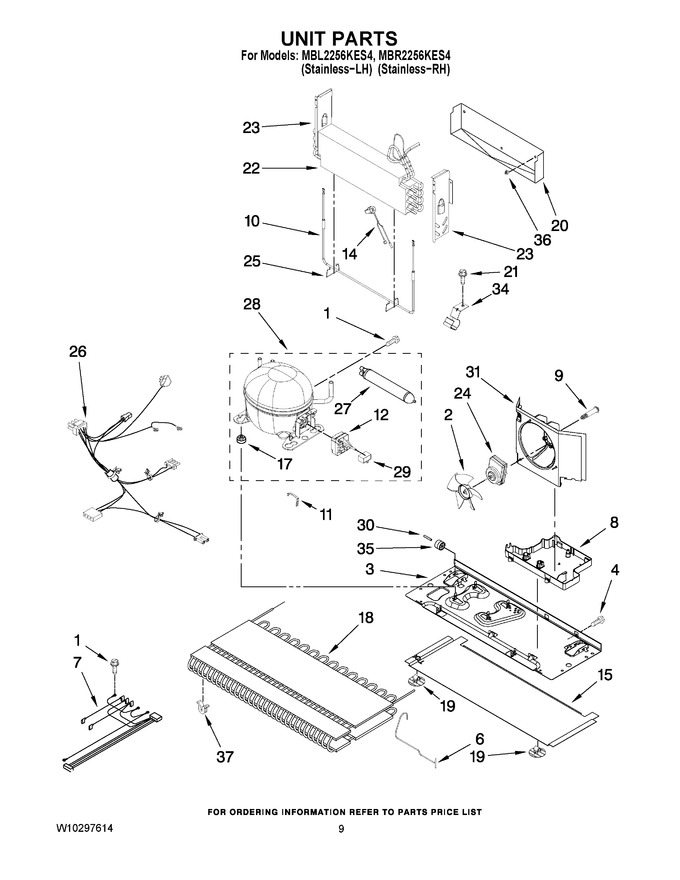

06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 105.29
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
6	W10217746		Tube, Discharge		Appelez-nous	-
7	W11260592		Harness, Evap Heater   (Replaces: W10280423)			Immediately	$ 80.51
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	W10825088		Evaporator Heater   (Replaces: 12729129)				$ 158.25
11	12745704		Strap, Bale		Appelez-nous	-
12	WPW10197426		Start Protect, Combo (service)   (Replaces: W10136414)				$ 154.34
12	WPW10244032		Start Protect, Combo (production)   (Replaces: W10244032)				$ 80.82
14	WPW10165425		Thermostat Defrost   (Replaces: 12639324SP)			Immediately	$ 74.57
15	W10206338		Extension-basepan		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 7.19
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 335.38
19	W10206339		Fastener, Basepan Extension				$ 10.69
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 54.30
21	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
22	12002041		Evaporator   (Replaces: 12726403)				$ 348.63
23	12225702		Dam (right Side)				$ 14.09
23	12225602		Dam (left) Side)				$ 14.66
24	W11613295		Motor, Fan   (Replaces: 12825101)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W10212854		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10160407		Compressor Kit (contains Items 12, 17, 27, & 29)   (Replaces: 12049769)				$ 599.92
29	WP65889-4		Capacitor   (Replaces: 2255130)			Immediately	$ 61.14
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
34	10547003		Clip, Drier		Appelez-nous	-
35	12477102		Roller (2)			Immediately	$ 7.38
36	10623002		Clip, Evap (2)				$ 11.53
37	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.34
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.25 Ozs.(r-134a))		Appelez-nous	-
