SELECT A DIAGRAM

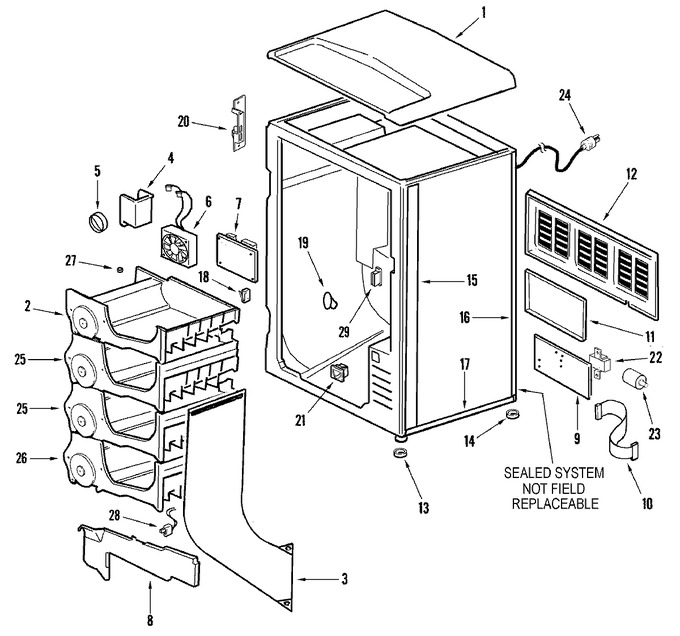

01 - Cabinet
02 - Door
03 - Stand
04 - Supplemental Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 11001077 | Panel, Top (blk) | 10 |
|
- | ||||
| 2 | 11001185 | Dispenser Assy. (top) | 10 |
|
- | ||||
| 3 | 11001121 | ``s`` Hook, Sling | 10 |
|
- | ||||
| 3 | 11001083 | Sling Assy. | 10 |
|
- | ||||
| 4 | 11001070 | Control Assy., Temperature | 10 |
|
- | ||||
| 4 | 11001109 | Screw, M4.2 X 16mm, Self Tap | 10 |
|
- | ||||
| 5 | 11001119 | Knob, Temperature Control | 10 |
|
- | ||||
| 6 | 11001069 | Fan, Circulating | 10 |
|
- | ||||
| 7 | 11001124 | Board, Connector Pcb | 10 |
|
$ 83.85 | ||||
| 8 | 11001120 | Bracket, Dispensing Assy. | 10 |
|
- | ||||
| 9 | 11001115 | Board, Main Pcb | 10 |
|
- | ||||
| 10 | 11001125 | Cable, Ribbon | 10 |
|
- | ||||
| 11 | 11001117 | Cover, Main Board | 10 |
|
- | ||||
| 12 | 11001118 | Cover, Compressor | 10 |
|
- | ||||
| 13 | 11001109 | Screw, M4.2 X 16mm, Self Tap | 10 |
|
- | ||||
| 13 | 11001108 | Foot, Rubber (frt) | 10 |
|
- | ||||
| 14 | 11001100 | Screw | 10 |
|
- | ||||
| 14 | 11001110 | Foot, Rubber (rear) | 10 |
|
- | ||||
| 15 | 11001129 | Frame, Side (lt-frt-blk) | 10 |
|
- | ||||
| 15 | 11001127 | Frame, Side (rt-frt-blk) | 10 |
|
- | ||||
| 15 | 11001135 | Screw (m4,8mm,ph Pan Head-blk) | 10 |
|
- | ||||
| 16 | 11001131 | Frame, Side (rear-blk) | 10 |
|
- | ||||
| 16 | 11001135 | Screw (m4,8mm,ph Pan Head-blk) | 10 |
|
- | ||||
| 17 | 11001133 | Frame, Lower (blk) | 10 |
|
- | ||||
| 17 | 11001135 | Screw (m4,8mm,ph Pan Head-blk) | 10 |
|
- | ||||
| 18 | 11001123 | Switch, Low Product | 10 |
|
- | ||||
| 19 | 11001126 | Plug, Liner | 10 |
|
- | ||||
| 20 | 11001140 | Hinge W/pin (blk) | 10 |
|
$ 23.55 | ||||
| 20 | 11001144 | Screw (phil Flt Head-stnls) | 10 |
|
- | ||||
| 21 | 11001153 | Switch, Door | 10 |
|
- | ||||
| 22 | 11001154 | Transformer | 10 |
|
$ 26.25 | ||||
| 23 | W11105120 | Capacitor, Run (Replaces: 11001155) | 10 |
|
$ 336.30 | ||||
| 24 | 11001122 | Cord, Power | 10 |
|
- | ||||
| 25 | 11001186 | Dispenser Assy. (middle) | 10 |
|
- | ||||
| 26 | 11001187 | Dispenser Assy. (btm) | 10 |
|
- | ||||
| 27 | 11001188 | Magnet | 10 |
|
- | ||||
| 28 | 11001189 | Switch, Disable | 10 |
|
- | ||||
| 29 | 11001206 | Magnet, Latch | 10 |
|
- | ||||
| 29 | WP98008545 | Screw (Replaces: 11001087) | 10 |
|
$ 16.74 |
