SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Stand


04 - Supplemental Information

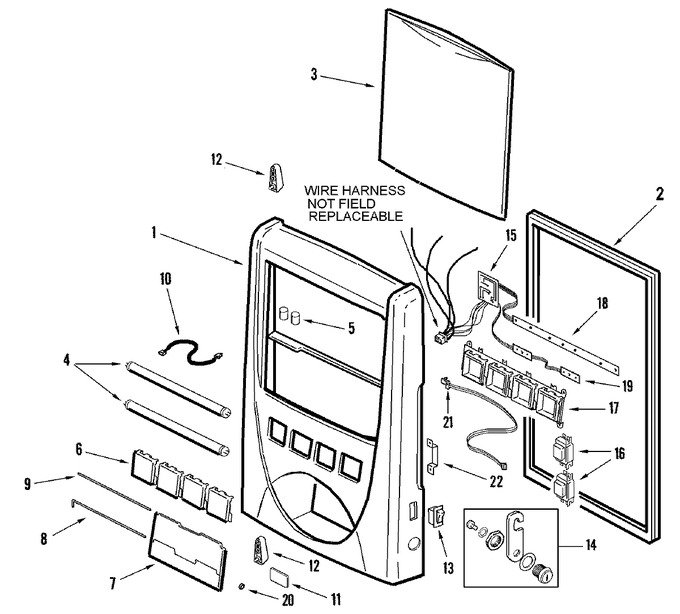

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	11001075		Door Assy. (blk)	10	Appelez-nous	-
2	11001084		Gasket, Door (blk)	10	Appelez-nous	-
3	11001193		Panel, Display	10	Appelez-nous	-
3	11001086		Support, Front Sports Panel	10	Appelez-nous	-
3	WP98008545		Screw   (Replaces: 11001087)	10			$ 16.74
4	11001082		Bulb, Light	10	Appelez-nous	-
5	11001116		Starter, Light Bulb	10	Appelez-nous	-
6	11001080		Button	10			$ 16.24
6	11001142		Cards, Product Selection	10	Appelez-nous	-
7	11001085		Door Assy., Flipper	10	Appelez-nous	-
8	11001106		Pin, Flipper Door Hinge (ctr)	10	Appelez-nous	-
9	11001107		Pin, Flipper Door Hinge (main)	10	Appelez-nous	-
10	11001079		Wire Harness, Door	10	Appelez-nous	-
11	11001137		Badge	10	Appelez-nous	-
12	11001194		Hinge, Door (blk)	10	Appelez-nous	-
13	11001196		Switch, Door Rocker	10	Appelez-nous	-
14	11001197		Lock Assy., Door (blk)	10	Appelez-nous	-
15	11001198		Board, Pcb (front Panel)	10	Appelez-nous	-
16	11001199		Ballast	10	Appelez-nous	-
17	11001200		Frame, Button	10	Appelez-nous	-
18	11001201		Board, Pcb (led Button)	10	Appelez-nous	-
19	11001202		Board, Pcb (product Select)	10	Appelez-nous	-
20	11001188		Magnet	10	Appelez-nous	-
21	11001182		Board W/sensor (flipper Door)	10	Appelez-nous	-
22	11001207		Plate, Latch	10	Appelez-nous	-
22	WP98008545		Screw   (Replaces: 11001087)	10			$ 16.74
23	11001081		Key	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
