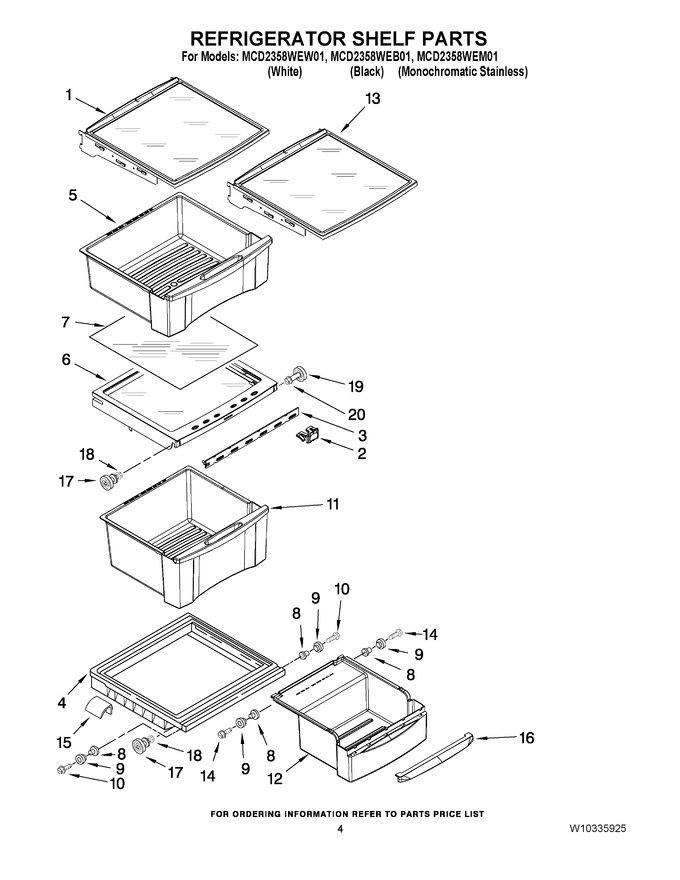

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141750		Shelf Assy, Pan				$ 206.22
2	WP2179343		Button, Humidity   (Replaces: 2179343)				$ 32.40
3	WP2179342		Slide, Humidity   (Replaces: 2179342)				$ 29.14
4	WPW10270150		Cover, Meat Pan   (Replaces: W10270150)				$ 342.45
5	W11497323		Snack Pan   (Replaces: 2188667)				$ 223.66
6	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
7	W10864399		Glass Cover   (Replaces: 2179259)				$ 220.98
8	2174478		Eyelet, Roller				$ 5.70
9	2188212		Roller		Appelez-nous	-
10	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
11	WPW10178772		Crisper Pan   (Replaces: W10178772)				$ 157.44
12	2318569		Meat Pan				$ 73.60
13	W10235943		Shelf And Frame Assembly				$ 336.71
14	WP489261		Screw   (Replaces: 489261)				$ 7.61
15	2223487		Deflector				$ 83.68
16	2203029		Handle				$ 85.47
17	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.07
18	WP3-24004-109		Screw   (Replaces: W10191954)				$ 8.05
19	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
20	W10191952		Screw				$ 5.65
