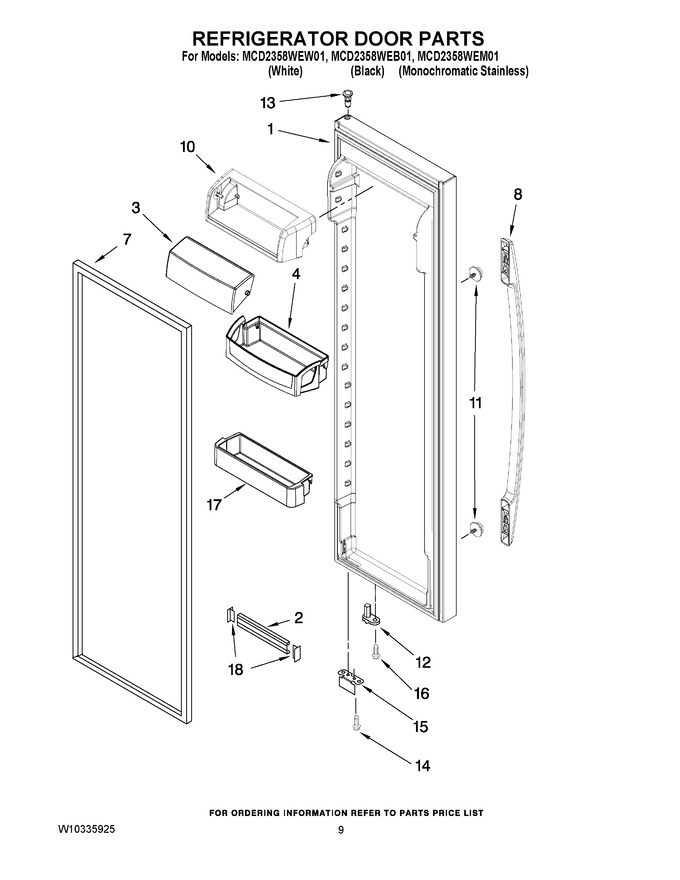

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168249		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	W10257858		Refrigerator Door (includes No.7) (mono Stainless)		Appelez-nous	-
1	W10168248		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2203087		Trim, Shelf				$ 42.91
3	2255421		Dairy Door				$ 34.76
4	WPW10321304		Door Bin   (Replaces: 2304235)			Immediately	$ 44.73
7	2223841		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
7	2223911		Door Gasket, Magnetic (black)		Appelez-nous	-
8	WPW10170743		Handle, Assy (stainless)   (Replaces: W10170743)				$ 365.52
8	WPW10170749		Handle, Assy (white)   (Replaces: W10170749)				$ 314.22
8	WPW10170750		Handle, Assy (black)   (Replaces: W10170750)				$ 309.83
10	2223879		Dairy Compartment				$ 40.49
11	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
12	2307048		Door Closer, Upper Cam		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2306940		Bracket, Door Stop (chrome)				$ 101.93
15	2306940B		Bracket, Door Stop (black)				$ 38.97
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 91.69
18	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.79
