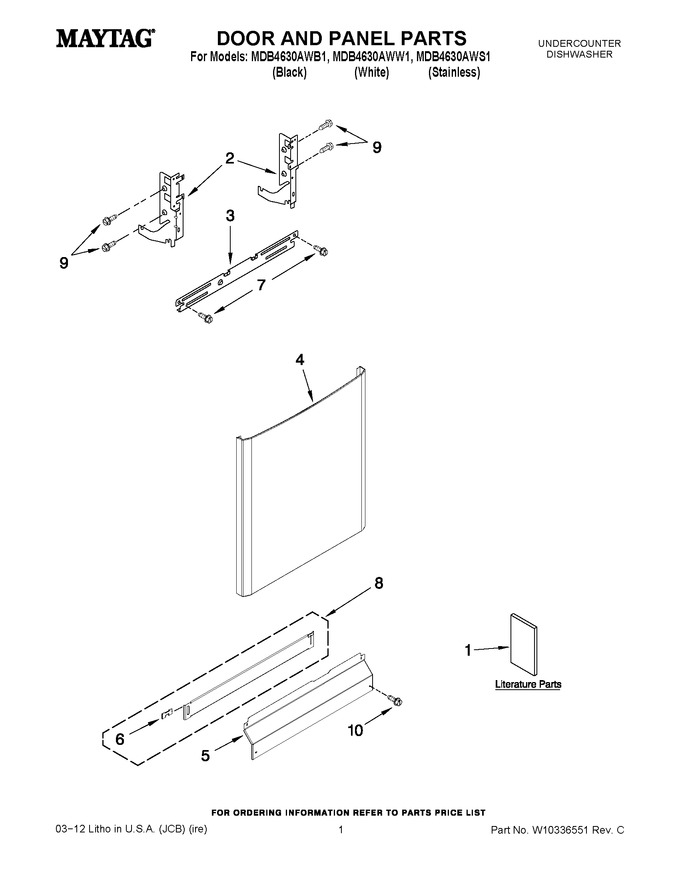

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10282553		Instructions, Installation		Appelez-nous	-
1	W10292970		Tech Sheet (french)		Appelez-nous	-
1	W10292953		Tech Sheet (english)		Appelez-nous	-
1	W10398586		Energy Guide		Appelez-nous	-
1	W10275148		Guide, Use & Care		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W10274891		Panel Front (white)				$ 133.14
4	WPW10274890		Panel Front (black)   (Replaces: W10274890)				$ 358.95
5	W11763736		Access Panel   (Replaces: W10195777)			Immediately	$ 42.25
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
7	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
8	W10871196		Toe Panel   (Replaces: 8573286)				$ 174.04
9	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
