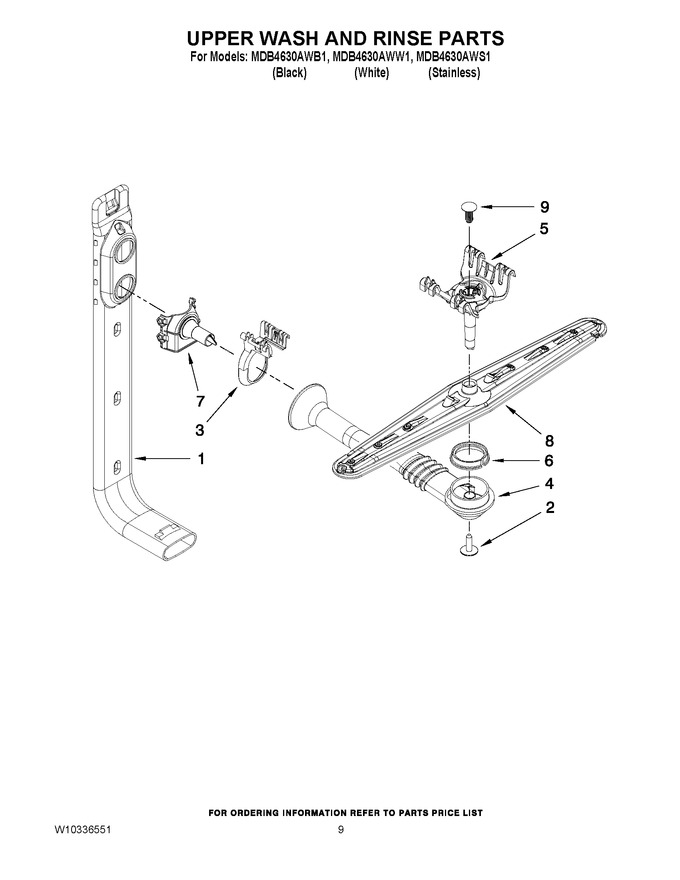

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10254531 | Feed Tube |
|
$ 87.09 | |||||
| 2 | WPW10349488 | Screw (Replaces: W10349488) |
|
$ 8.97 | |||||
| 3 | WP3385160 | Holder, Feed Tube (Replaces: 3385160) |
|
$ 38.61 | |||||
| 4 | WPW10258149 | Manifold (Replaces: W10258149) |
|
Immediately | $ 71.76 | ||||
| 5 | WP3385159 | Mount,spray Arm (Replaces: 3385159) |
|
$ 104.02 | |||||
| 6 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 7 | 8562095 | Nozzle-feed |
|
$ 50.90 | |||||
| 8 | WPW10082841 | Spray Arm (Replaces: W10082841) |
|
Immediately | $ 82.56 | ||||
| 9 | WP3400919 | Retainer, Push-in (Replaces: 3400919) |
|
$ 11.20 |
