SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts

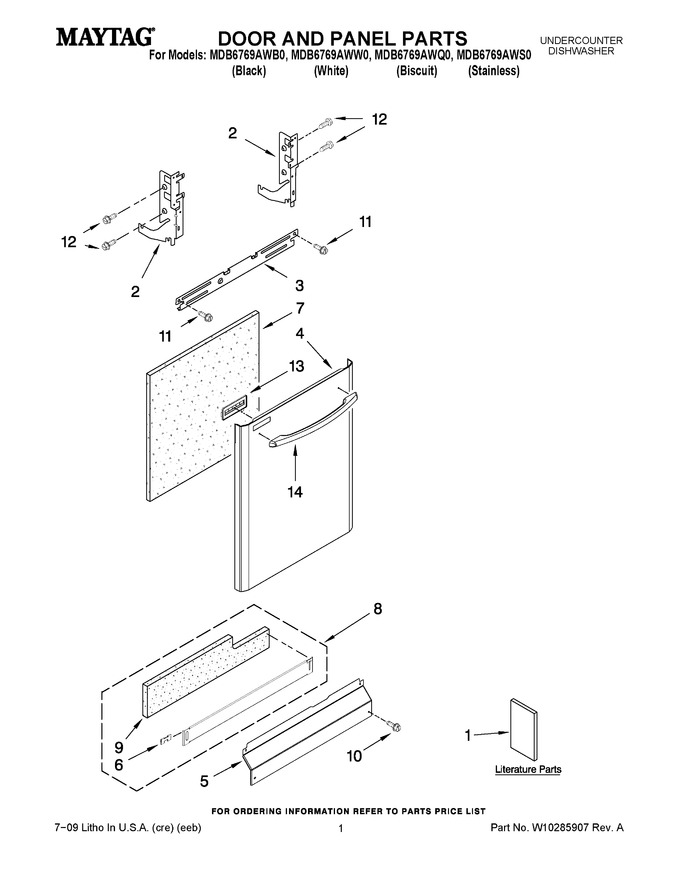

01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Fill, Drain And Overfill Parts
04 - Fill, Drain And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump And Motor Parts
06 - Pump And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Lower Washarm Parts
11 - Lower Washarm Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10240117 Guide, Use & Care Spanish Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
1 W10240115 Instructions, Installation Appelez-nous -
1 W10240159 Energy Guide Appelez-nous -
1 W10240116 Guide, Use & Care English/french Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 130.98

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 130.98

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10245556 Panel Front (biscuit) Appelez-nous -
4 W10245554 Panel Front (black) Appelez-nous -
4 W10245555 Panel Front (white) Appelez-nous -
4 W10245557 Panel Front (stainless) Appelez-nous -
5 WPW10441007 Access Panel (white)   (Replaces: 8573256) Special Order $ 162.80

5 W11763736 Access Panel (black)   (Replaces: 8573255) In-Stock Immediately $ 38.79

6 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 10.68

7 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 91.65

8 W10871196 Toe Panel (includes Item 9) (black)   (Replaces: W10205336) Special Order $ 165.75

8 W10799406 Toe Panel (includes Item 9) (white)   (Replaces: W10205337) Special Order $ 159.12

9 W10831329 Insulation, Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 40.71

10 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

10 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 7.75

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

12 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.00

13 W10245560 Vent Assembly Appelez-nous -
14 W10199639 Handle (chrome) Special Order $ 101.41

14 W10199637 Handle (black) Special Order $ 75.14

14 W10324627 Handle (white)   (Replaces: W10199635) Special Order $ 182.84

14 W10249315 Handle (biscuit) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for MDB6769AWS0
