Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11513976 Tub Assembly (includes Heater Assembly)   (Replaces: W10254859) Special Order $ 502.10

2 W11384788 Strain Relief   (Replaces: 8573061) Special Order $ 21.51

3 W10542314 Door Seal   (Replaces: 8268888) In-Stock Immediately $ 97.26

4 W10077370 Strike, Latch Appelez-nous -
5 WP9743002 Gasket, Bracket Mounting   (Replaces: 9743002) In-Stock Immediately $ 9.56

6 8575616 Actuator Assy (includes No. 8) Special Order $ 63.87

7 W10817436 Screw   (Replaces: 8533836) In-Stock Immediately $ 7.74

8 W10082769 Motor, Wax Assembly Special Order $ 31.64

9 WP308685 Screw   (Replaces: 3367670) In-Stock Immediately $ 7.87

10 WP8269145 Bracket, Undercounter   (Replaces: 8269145) In-Stock Immediately $ 19.33

11 WP3400074 Screw   (Replaces: 3400074) Special Order $ 7.19

12 WP3378128 Washer, Pronged   (Replaces: 3378128) Special Order $ 9.03

13 WP3400014 Screw   (Replaces: 3400014) Special Order $ 7.75

14 8193716 Leveler, Leg   (Replaces: 8524584) In-Stock Immediately $ 84.72

15 W10165274 Screw Special Order $ 12.83

16 WPW10337934 Spring, Door Balance   (Replaces: 8524473) In-Stock Immediately $ 34.61

17 WP8575897 Wheel & Mount Assembly (also Order Item 6)   (Replaces: 8575897) In-Stock Immediately $ 9.70

18 WP3400892 Screw,   (Replaces: 3400892) Special Order $ 7.75

19 W11779375 Cover, Terminal Box   (Replaces: 8268991) Special Order $ 26.79

21 WP304666 Retainer, Push (includes Item 15)   (Replaces: 304666) Special Order $ 28.05

23 W11086533 Shield, Sound Tub   (Replaces: 8573240) In-Stock Immediately $ 31.30

24 W10539489 Bracket, Thermostat   (Replaces: 3378595) Special Order $ 19.18

25 WP661566 Thermostat   (Replaces: 661566) In-Stock Immediately $ 31.28

26 W10185369 Hinge Bracket (includes Item 14) (right) Appelez-nous -
26 W10185368 Hinge Bracket (includes Item 14) (left) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

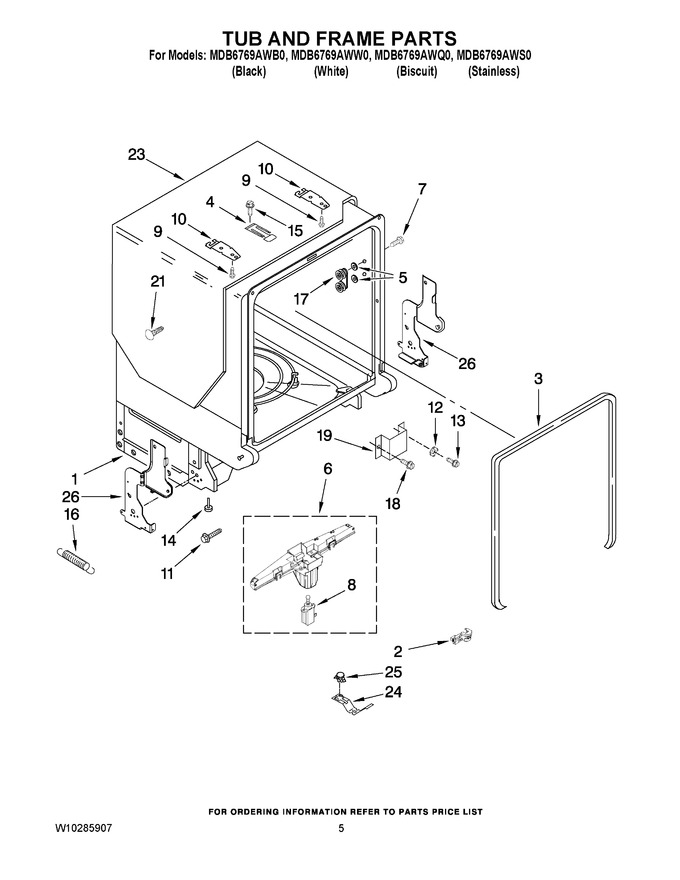

Diagram for MDB6769AWS0
