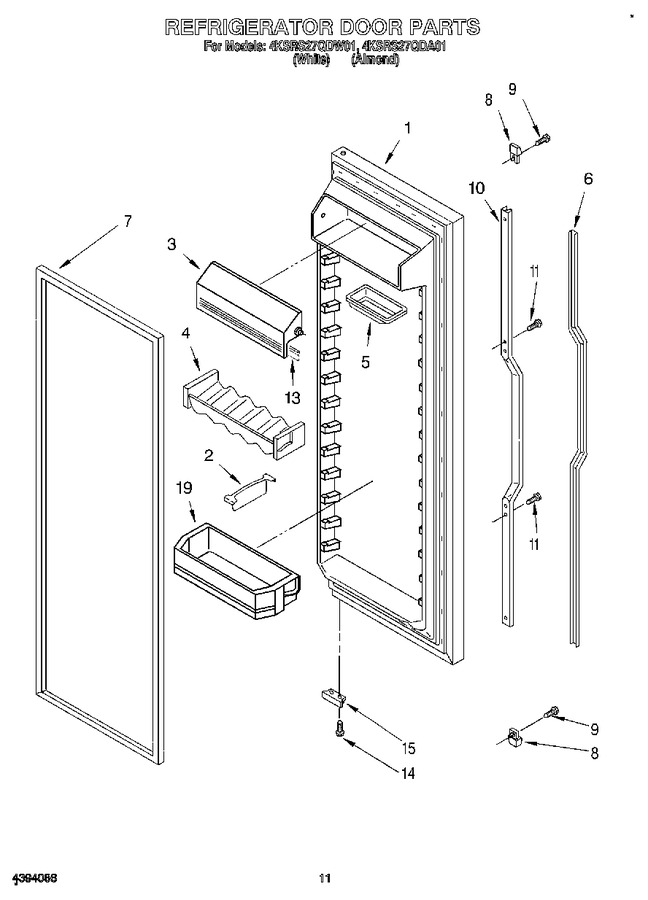

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177185		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
1	2177184		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
6	2173828		Insert, Handle (almond)		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (service)   (Replaces: 2177290)			Immediately	$ 333.00
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2173824		Retainer, Insert		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
13	2159124		Gasket		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 8.56
15	2155331		Bracket, Door Stop		Appelez-nous	-
19	4318417		Black Grille Kit		Appelez-nous	-
19	4210348		Black Acrylic Panel Kit		Appelez-nous	-
19	4211148		White Acrylic Panel Kit		Appelez-nous	-
19	4211147		Almond Acrylic Panel Kit		Appelez-nous	-
19	4318339		Handle Inserts (black)		Appelez-nous	-
19	4318340		Woodgrain Handle Inserts		Appelez-nous	-
19	2171062		Shelf Bin (4)				$ 40.08
19	4318336		Trim Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
