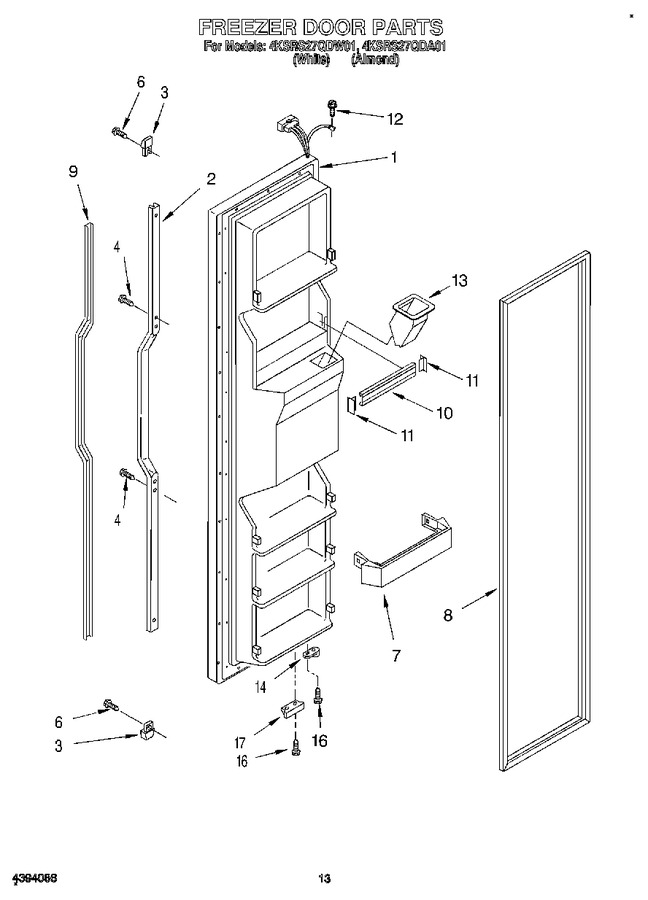

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2179952		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2179953		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2173824		Retainer, Insert		Appelez-nous	-
3	2173826		End Cap (2)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
6	489075		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)   (Replaces: 2177289)				$ 310.19
9	2173825		Insert, Handle (white)		Appelez-nous	-
9	2173828		Insert, Handle (almond)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 23.11
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.18
12	WP488234		Screw   (Replaces: 489422)				$ 6.74
13	2156145		Chute, Ice		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
16	WP999367		Screw   (Replaces: 489367)				$ 7.86
17	2155331		Bracket, Door Stop		Appelez-nous	-
