Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10142800 Tech Sheet Appelez-nous -
1 W10290309 Instructions, Installation Appelez-nous -
1 W10398587 Energy Guide Appelez-nous -
1 W10240116 Use & Care Guide (english/french) Appelez-nous -
1 W10240117 Use & Care Guide (spanish) Appelez-nous -
2 W11613572 Arm, Hinge (right)   (Replaces: W10143373) In-Stock Immediately $ 78.37

2 W11806566 Arm, Hinge (left)   (Replaces: W10143374) In-Stock Immediately $ 66.52

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10240091 Panel Front (includes Items 13,15,17) (stainless) Special Order $ 161.94

4 W10240090 Panel Front (includes Items 13,15,17) (bisque) Appelez-nous -
4 W10240088 Panel Front (includes Items 13,15,17) (black) Special Order $ 140.56

4 W10240089 Panel Front (includes Items 13,15,17) (white) Special Order $ 135.40

5 W11763736 Access Panel   (Replaces: W10195777) In-Stock Immediately $ 38.79

6 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 10.68

7 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 91.65

8 W10871196 Toe Panel   (Replaces: W10205336) Special Order $ 165.75

9 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 40.71

10 WP302868 Screw   (Replaces: 302868) In-Stock Immediately $ 7.75

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

12 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.00

13 W10201654 Vent Assembly (white) Special Order $ 50.35

13 W10201655 Vent Assembly (bisque) Appelez-nous -
13 W10201656 Vent Assembly (stainless) Appelez-nous -
13 W10201653 Vent Assembly (black) Appelez-nous -
14 W10324627 Handle (white)   (Replaces: W10199635) Special Order $ 182.84

14 W10199637 Handle (black) Special Order $ 75.14

14 W10249315 Handle (bisque) Appelez-nous -
14 W10199639 Handle (chrome) Special Order $ 101.41

15 WP8534008 Screw   (Replaces: 8534008) Special Order $ 7.81

16 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

17 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 18.41


    View Diagram in Separate Window     Print Icon   Print Part List

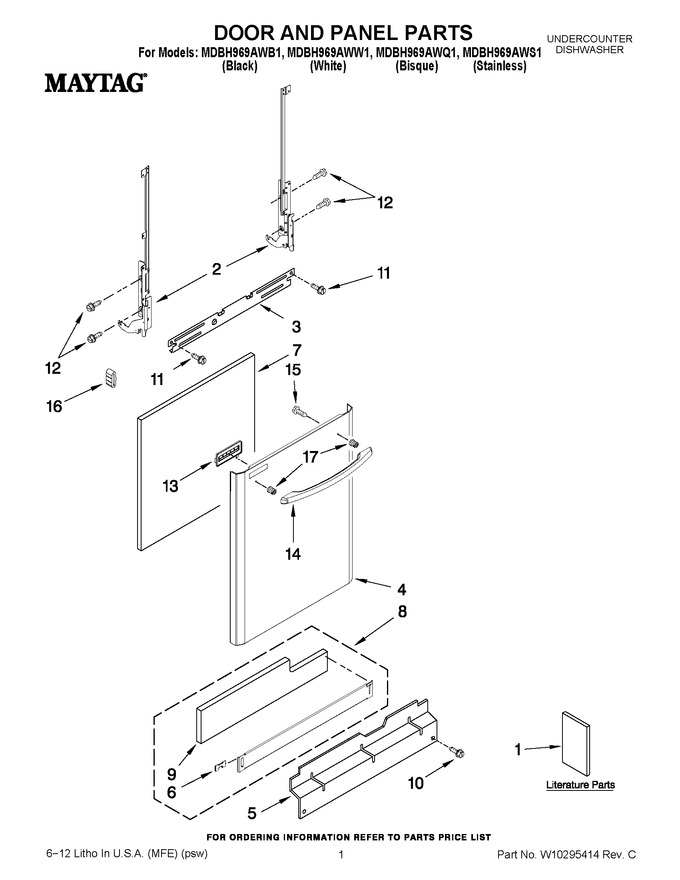

Diagram for MDBH969AWW1
