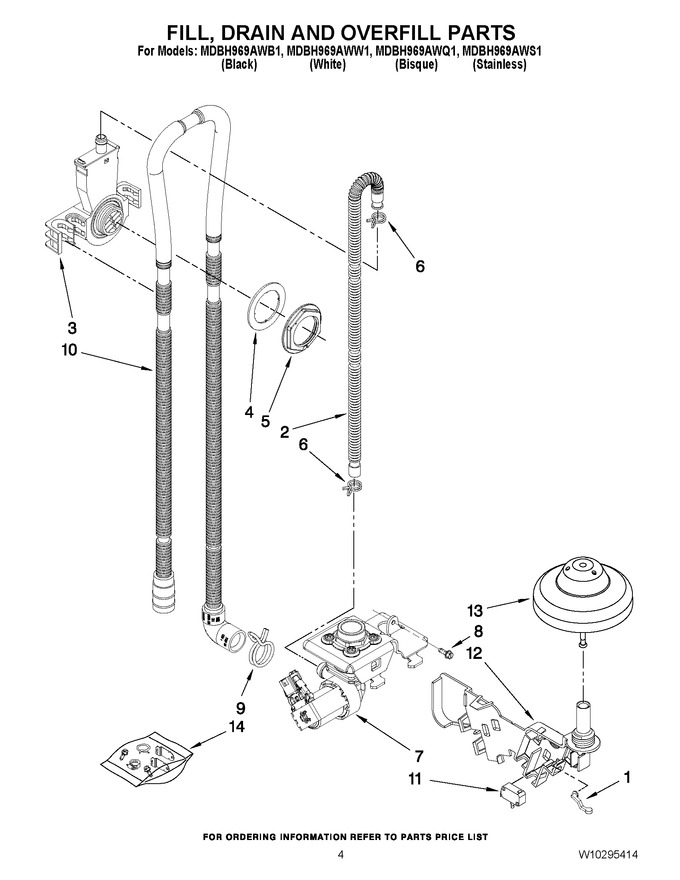

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 54.72 | ||||
| 2 | W10878507 | Hose, Inlet (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Water Inlet (also Order Item 4) (Replaces: W10195536) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 39.11 | ||||
| 5 | WPW10508676 | Nut, Inlet (also Order Item 4) (Replaces: 8531327) |
|
$ 18.43 | |||||
| 6 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.12 | |||||
| 7 | W10648041 | Fill Valve Assembly (Replaces: W10195049) |
|
Immediately | $ 98.76 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | WPW10545278 | Drain Loop With Check Valve (Replaces: W10137608) |
|
Immediately | $ 74.41 | ||||
| 11 | WPW10102495 | Switch, Overfill (Replaces: W10102495) |
|
$ 74.95 | |||||
| 12 | WPW10175383 | Standpipe, Overfill (Replaces: W10175383) |
|
$ 85.02 | |||||
| 13 | WP8268895 | Float & Retainer Assembly (Replaces: 8268895) |
|
$ 100.39 | |||||
| 14 | WPW10292152 | Miscellaneous Parts Bag (includes 2 Screws, 2 Hose Clamps & 2 Undercounter Brackets) (Replaces: W10292152) |
|
Immediately | $ 43.90 |
