Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8300481 Control Panel Assy W/membrane Switch (black) Appelez-nous -
1 8300480 Control Panel Assy W/membrane Switch (white) Appelez-nous -
1 WP3400832 Control Panel Assy. W/membrane Switch (screw)   (Replaces: 8281179) In-Stock Immediately $ 7.75

2 4451033 Gasket, Control Panel Appelez-nous -
3 4453377 Microcomputer Appelez-nous -
3 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.49

4 4451790 Panel, Control Appelez-nous -
5 4452260 Spacer, Foam Appelez-nous -
6 4452323 Membrane Switch Appelez-nous -
7 4452248 Insulation, Board Appelez-nous -
8 4452249 Insulation, Board Support Appelez-nous -
9 4452345 Insulator, Dialectric Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

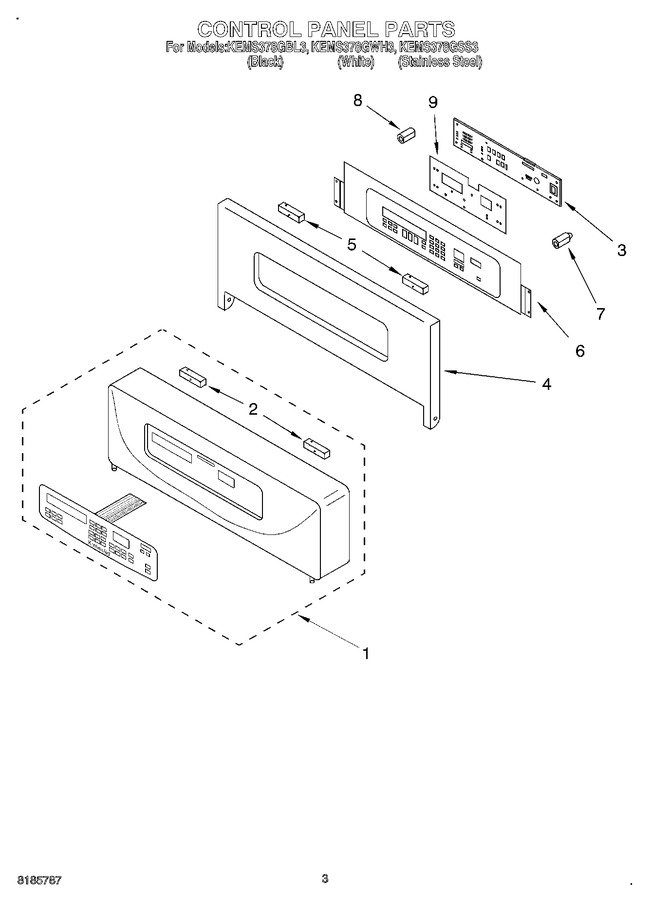

Diagram for KEMS378GWH3
