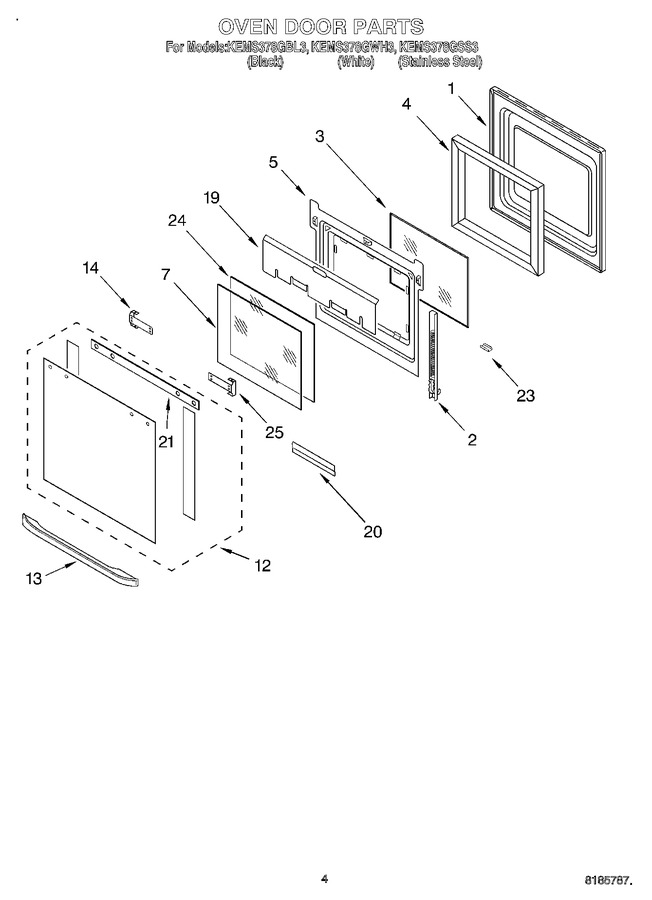

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451718 Door Liner Appelez-nous -
2 WP4455525 Hinge, Door (stainless Steel Model)   (Replaces: 4455525) In-Stock Immediately $ 77.73

2 WP4455524 Hinge, Door Black & White Mdl.   (Replaces: 4455524) In-Stock Immediately $ 67.87

2 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.19

3 WP4449253 Glass, Inner   (Replaces: 4449253) Special Order $ 168.61

4 4451721 Insulation, Door Special Order $ 37.62

5 4451670 Retainer, Glass Appelez-nous -
5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

7 WP4449257 Glass, Inner   (Replaces: 4449257) In-Stock Immediately $ 198.39

12 4452071 Door Glass, Assy (black Model) Appelez-nous -
12 4452315 Door Glass, Assy (stainless Steel) Special Order $ 274.20

12 4452072 Door Glass, Assy (white Model) Appelez-nous -
13 4452087 Door Handle (stainless Steel) Appelez-nous -
13 4448411 Door Handle (black) Appelez-nous -
13 4448412 Door Handle (white) Appelez-nous -
14 4450813 Bracket, Handle Special Order $ 24.20

14 W10276642 Screw   (Replaces: 4451040) Special Order $ 6.10

19 4450361 Shield, Heat Appelez-nous -
19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

20 4451668 Retainer, Glass Appelez-nous -
20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

21 4451673 Seal, Door Top Appelez-nous -
23 WP3400832 Retainer, Glass-clip (screw)   (Replaces: 3400832) In-Stock Immediately $ 7.75

23 4450863 Retainer, Glass-clip (black) Appelez-nous -
23 4450864 Retainer, Glass-clip (white) Appelez-nous -
23 4451432 Retainer, Glass-clip (stainless Steel) Appelez-nous -
24 4455256 Glass, Inner Appelez-nous -
25 4452960 Bracket, Handle Stainless Steel Model (left Hand) Appelez-nous -
25 4452959 Bracket, Handle Stainless Steel Model (right Hand) Appelez-nous -
