SELECT A DIAGRAM

01 - Blower


02 - Cabinet & Control Panel


03 - Cylinder & Heater

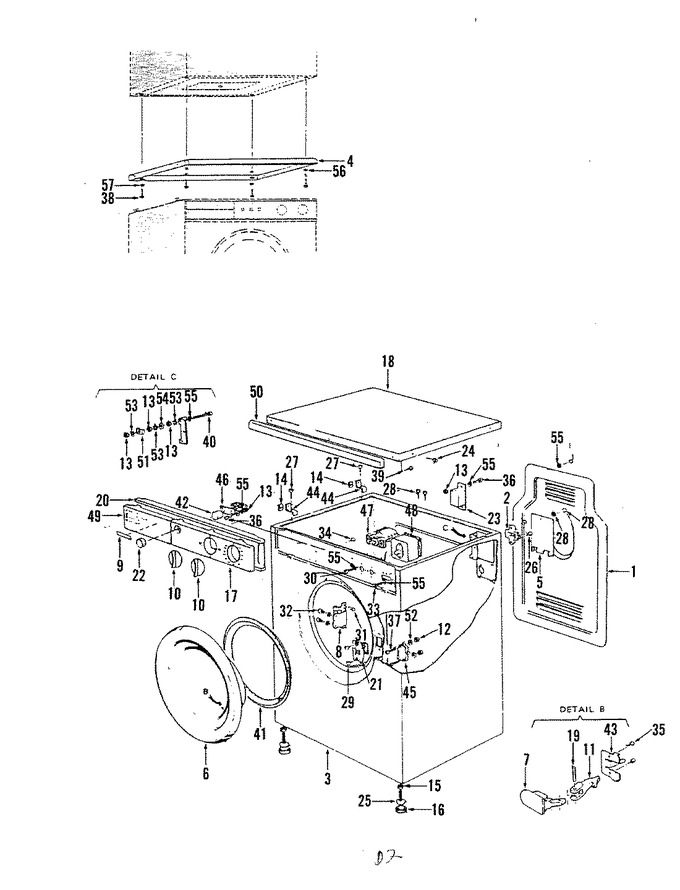

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	181750012		Back Panel		Appelez-nous	-
2	116990419		Terminal Block		Appelez-nous	-
3	189500038		Wh Cabinet Asm		Appelez-nous	-
4	111100740		Cover		Appelez-nous	-
5	111100679		Cover		Appelez-nous	-
6	112990010		Door Assembly		Appelez-nous	-
7	119802497		Handle Asm		Appelez-nous	-
8	113190122		Hinge Asm				$ 39.10
9	33-9845		Nameplate		Appelez-nous	-
10	189990081		Knob		Appelez-nous	-
11	182990079		Door Latch		Appelez-nous	-
12	920134133		Nut		Appelez-nous	-
13	920113418		Nut		Appelez-nous	-
14	940073430		Nut		Appelez-nous	-
15	920115235		Nut		Appelez-nous	-
16	114400056		Pad		Appelez-nous	-
17	182990144		Control Panel		Appelez-nous	-
18	111100734		Top Panel		Appelez-nous	-
19	113900056		Latch Pin				$ 8.01
20	112400396		Cntrl Mtg Plate		Appelez-nous	-
21	182990097		Latch Plate		Appelez-nous	-
22	112902035		Pushbutton		Appelez-nous	-
23	186990026		Relay		Appelez-nous	-
24	912344102		Screw		Appelez-nous	-
25	991170135		Leveler		Appelez-nous	-
26	912500100		Screw		Appelez-nous	-
27	912353335		Screw		Appelez-nous	-
28	995500001		Screw		Appelez-nous	-
29	WP7101P126-60		Screw   (Replaces: 991350557)			Immediately	$ 7.61
30	WP488234		Screw   (Replaces: 912131137)				$ 6.74
31	912200001		Screw		Appelez-nous	-
32	912153130		Screw		Appelez-nous	-
33	912131138		Screw		Appelez-nous	-
34	911354239		Screw		Appelez-nous	-
35	912121136		Screw		Appelez-nous	-
36	912133410		Screw		Appelez-nous	-
37	912125109		Screw		Appelez-nous	-
38	917143112		Screw		Appelez-nous	-
39	912362330		Screw		Appelez-nous	-
40	911149414		Screw		Appelez-nous	-
41	184410107		Door Seal		Appelez-nous	-
42	182990081		Spacer		Appelez-nous	-
43	113800428		Spring		Appelez-nous	-
44	181770084		Support		Appelez-nous	-
45	186240098		Door Switch		Appelez-nous	-
46	186990020		Switch		Appelez-nous	-
47	186240097		Temp Sel Switch		Appelez-nous	-
48	186810022		Timer		Appelez-nous	-
49	182990142		Panel Trim		Appelez-nous	-
50	112902354		Top Panel Trim		Appelez-nous	-
51	111901103		Washer		Appelez-nous	-
52	933003511		Washer		Appelez-nous	-
53	930024322		Washer		Appelez-nous	-
54	930021415		Washer, Grounding Plate		Appelez-nous	-
55	930036328		Washer		Appelez-nous	-
56	993210561		Washer		Appelez-nous	-
57	993041134		Washer		Appelez-nous	-
