SELECT A DIAGRAM

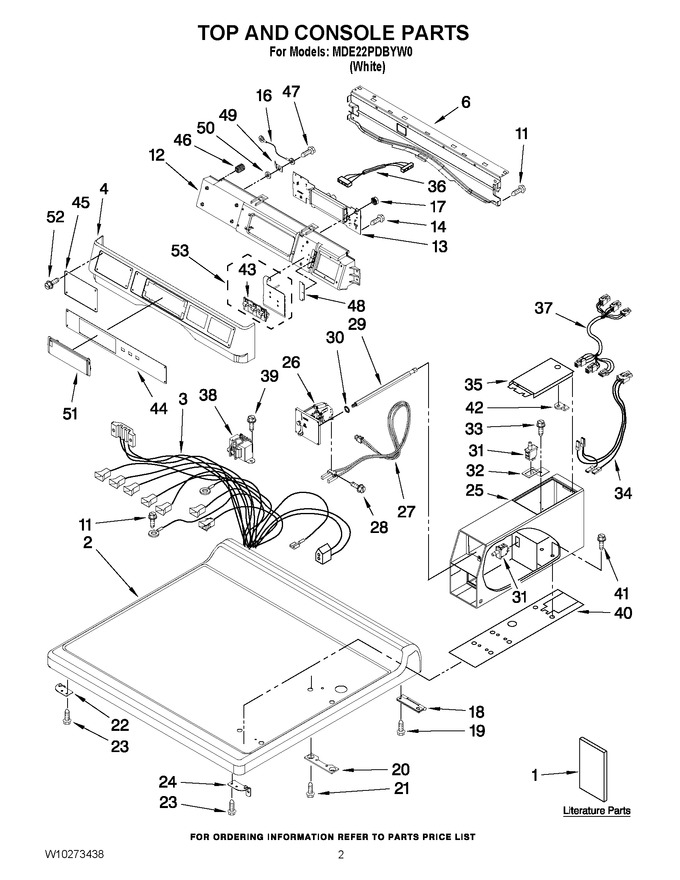

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10273438		Parts List		Appelez-nous	-
1	W10135154		Installation Instruction		Appelez-nous	-
1	W10239200		Tech Sheet		Appelez-nous	-
2	WPW10137411		Top   (Replaces: W10137411)				$ 410.00
3	W10111005		Harness, Main				$ 166.88
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 138.64
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
13	WPW10166385		User-interface Assembly   (Replaces: W10166360)			Immediately	$ 611.57
14	489136		Screw				$ 10.80
16	W10188087		Ground Wire Assembly		Appelez-nous	-
17	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 9.23
18	WP8565018		Hinge & Pin Assembly   (Replaces: 8565018)				$ 115.34
19	WP488627		Screw   (Replaces: 342055)				$ 8.11
20	3347825		Plate, Mounting		Appelez-nous	-
21	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
22	W10137445		Bracket, Top Panel (left)		Appelez-nous	-
23	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
24	W10137444		Bracket, Top Panel (right)		Appelez-nous	-
25	WPW10171128		Meter Case   (Replaces: W10171128)				$ 359.38
26	WPW10133242		Coin Drop Assy.   (Replaces: W10133242)				$ 126.51
27	WPW10247389		Coin Optic Sensor Assembly   (Replaces: W10130178)			Immediately	$ 121.70
28	WP3395530		Screw   (Replaces: W10142655)				$ 8.57
29	WPW10137319		Hex-bar Bolt   (Replaces: W10137319)				$ 85.37
30	W11170663		Washer   (Replaces: W10068270)				$ 4.54
31	WPW10131838		Switch-vault Service Door   (Replaces: W10131838)				$ 25.11
32	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
33	WPW10139210		Screw   (Replaces: W10139210)				$ 8.03
34	W10847806		Wire Harness, Sensor Switch   (Replaces: W10139456)				$ 119.49
35	W11283272		Service Door Assembly   (Replaces: 3351136)				$ 111.17
36	W10166307		Harness, Communication				$ 41.32
37	W10166308		Harness, Meter Case		Appelez-nous	-
38	WPW10131839		Transformer, 120 To 22.5 (vac)   (Replaces: W10131839)			Immediately	$ 140.23
39	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
40	W10137448		Cushion, Meter Case		Appelez-nous	-
41	W10223799		Bolt, Meter Case Mounting (5/16-24 X 1.00)		Appelez-nous	-
41	W10223792		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
42	W11401086		Cam-lock   (Replaces: W10156125)				$ 6.17
43	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 21.44
44	W10137438		Fascia-console		Appelez-nous	-
45	W10137461		Fascia-dispenser		Appelez-nous	-
46	WPW10189313		Insert   (Replaces: W10189313)				$ 9.23
47	WP488234		Screw   (Replaces: 488234)				$ 7.08
48	W10187276		Seal-console		Appelez-nous	-
49	3373818		Tab-grounding		Appelez-nous	-
50	W10189075		Washer, Brass				$ 19.13
51	WPW10131114		Display Cover   (Replaces: W10131114)				$ 49.92
52	WPW10137457		Screw   (Replaces: W10137457)				$ 7.85
53	WPW10135255		Assembly, Membrane Switch & Backer Plate   (Replaces: W10135255)				$ 219.41

    View Diagram in Separate Window       Print Part List
