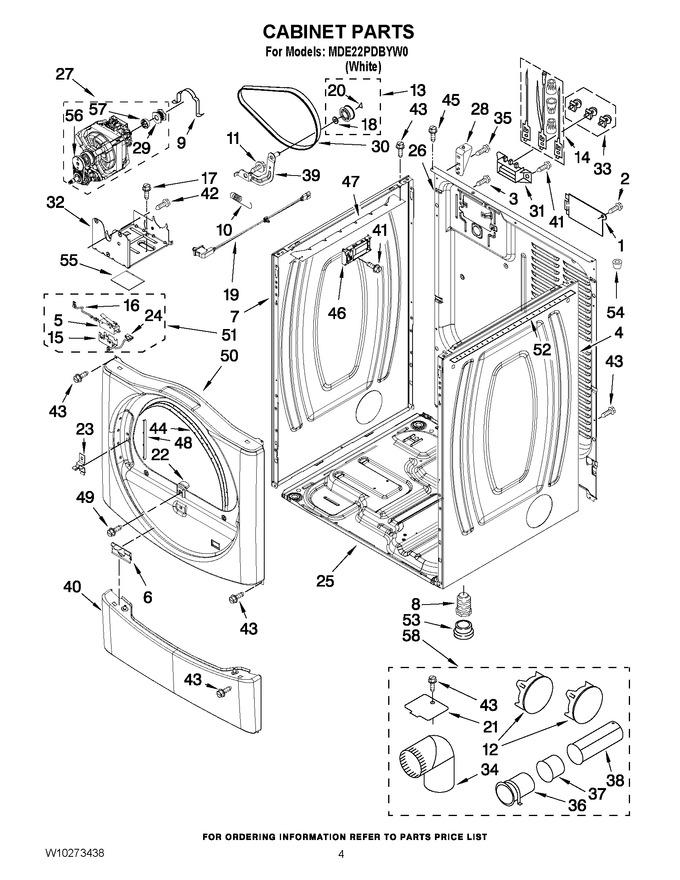

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 134.77 | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | Panel, Side (r.h.) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | W10542714 | Panel, Side (l.h.) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Item. 33 ) |
|
Immediately | $ 106.04 | ||||
| 15 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 16 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 17 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 95.53 | |||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8565083 | Ramp, Door |
|
- | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | 8539892 | Wire-motor To-belt-switch |
|
- | |||||
| 25 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 26 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10139766) |
|
Immediately | $ 433.87 | ||||
| 28 | W10137398 | Stop, Top Panel |
|
- | |||||
| 29 | WP8066184 | Pulley (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | WPW10344192 | Idler Bracket (Replaces: W10141380) |
|
Immediately | $ 94.57 | ||||
| 40 | WP8540621 | Toe Panel (Replaces: 8540621) |
|
$ 189.38 | |||||
| 41 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 7.36 | |||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 46 | WPW10166305 | Control Board (Replaces: W10166305) |
|
$ 193.90 | |||||
| 47 | WP8563727 | Control Bracket (Replaces: 8563727) |
|
$ 179.69 | |||||
| 48 | 8565043 | Plug, Strip Front Panel |
|
$ 97.29 | |||||
| 49 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 50 | WPW10117421 | Front Panel (includes Illus. 44) (Replaces: W10117421) |
|
$ 297.23 | |||||
| 51 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 27.72 | |||||
| 52 | WP8318396A | Foam-seal (iec) (Replaces: 8318396) |
|
$ 39.71 | |||||
| 53 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 54 | 356674 | Cone Wedge |
|
$ 33.19 | |||||
| 55 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 23.29 | |||||
| 56 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 57 | WP3393657 | Belt, Restrain (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
