View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

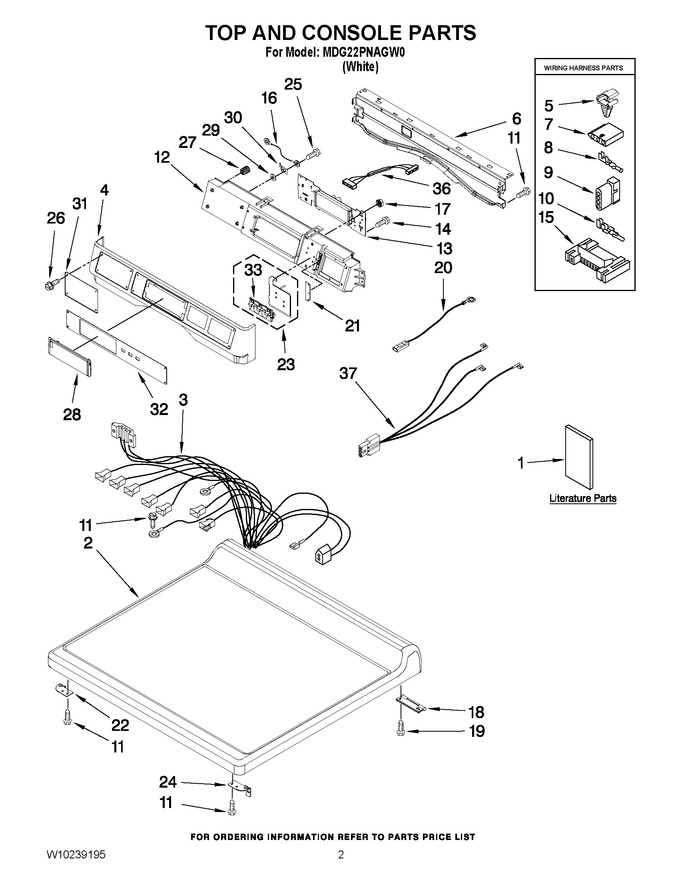

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239195 | Parts List |
|
- | |||||
| 1 | W10233253 | User Instruction |
|
- | |||||
| 1 | W10239207 | Installation Instruction |
|
- | |||||
| 1 | W10239197 | Tech Sheet |
|
- | |||||
| 2 | W11622909 | Top (Replaces: W10137410) |
|
- | |||||
| 3 | W10111046 | Harness, Main |
|
- | |||||
| 4 | W10779120 | Console (outer) (Replaces: W10137459) |
|
$ 138.64 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | WPW10166346 | User-interface Assembly (Replaces: W10166346) |
|
$ 328.95 | |||||
| 14 | 489136 | Screw, 3-24 X 1/32 |
|
$ 10.80 | |||||
| 15 | 3395683 | Connector, (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | W10188087 | Ground Wire Assembly |
|
- | |||||
| 17 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | W10080310 | Screw, 8-18 X 1/2 |
|
- | |||||
| 20 | W10257051 | Jumper, Static |
|
- | |||||
| 21 | W10187276 | Seal-console |
|
- | |||||
| 22 | W10137445 | Bracket, Top Panel (left) |
|
- | |||||
| 23 | WPW10135255 | Assembly, Membrane Switch& Backer Plate (Replaces: W10135255) |
|
$ 219.41 | |||||
| 24 | W10137444 | Bracket, Top Panel (right) |
|
- | |||||
| 25 | WP488234 | Screw, 8-32 X 1/4 (Replaces: 488234) |
|
$ 7.08 | |||||
| 26 | WPW10137457 | Screw, 8-32 X 3/64 (Replaces: W10137457) |
|
$ 7.85 | |||||
| 27 | WPW10189313 | Insert (8) (Replaces: W10189313) |
|
$ 9.23 | |||||
| 28 | WPW10131114 | Display Cover (Replaces: W10131114) |
|
$ 49.92 | |||||
| 29 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 30 | 3373818 | Tab-grounding |
|
- | |||||
| 31 | W10137461 | Facia-dispenser |
|
- | |||||
| 32 | W10135194 | Facia-console |
|
- | |||||
| 33 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 21.44 | ||||
| 36 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 37 | W10190549 | Jumper, Transformer |
|
- |
