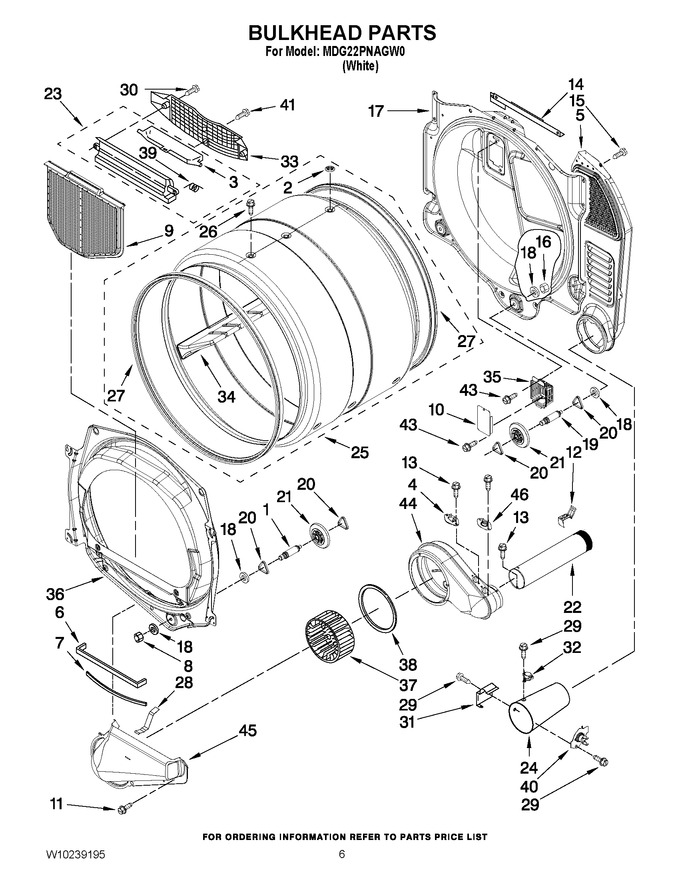

03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | W10665050 | Drum, Caplug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 3 | W10181925 | Door, Lint Screen |
|
$ 18.96 | |||||
| 4 | WPW10167627 | Thermal Limiter (Replaces: W10167627) |
|
$ 103.47 | |||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Foam-seal (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: W10080210) |
|
$ 12.77 | |||||
| 9 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | W10080380 | Screw, 8-18 X 5/8 |
|
- | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | W10080820 | Screw, 8-18 X .298 |
|
- | |||||
| 14 | W10118337 | Bracket-bulkhead Upper Mounting |
|
- | |||||
| 15 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 10.01 | ||||
| 17 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 356.42 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | W10225176 | Exhaust Pipe (Replaces: W10225179) |
|
- | |||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181928) |
|
$ 44.99 | |||||
| 24 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 25 | W10865331 | Complete Drum (Replaces: W10233255) |
|
- | |||||
| 26 | W10853898 | Screw, 11-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP8066208 | Clip-spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 29 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 30 | W10080640 | Screw, 10-16 X 1 |
|
- | |||||
| 31 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 32 | W10853395 | Thermostat 255°f High Limit (Replaces: W10206703) |
|
- | |||||
| 33 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 36.90 | ||||
| 34 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 146.31 | |||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 36 | 8565061 | Bulkhead, Front |
|
$ 253.62 | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 38 | W10181918 | Foam-seal |
|
- | |||||
| 39 | WP3394986 | Spring, Lint Screen (Replaces: 3394986) |
|
$ 93.47 | |||||
| 40 | WPW10181549 | Thermal-cutoff (Replaces: W10181549) |
|
$ 112.68 | |||||
| 41 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 43 | W10080360 | Screw, 8-15 X 1/2 |
|
- | |||||
| 44 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 106.79 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: W10119263) |
|
$ 217.48 | |||||
| 46 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 |
