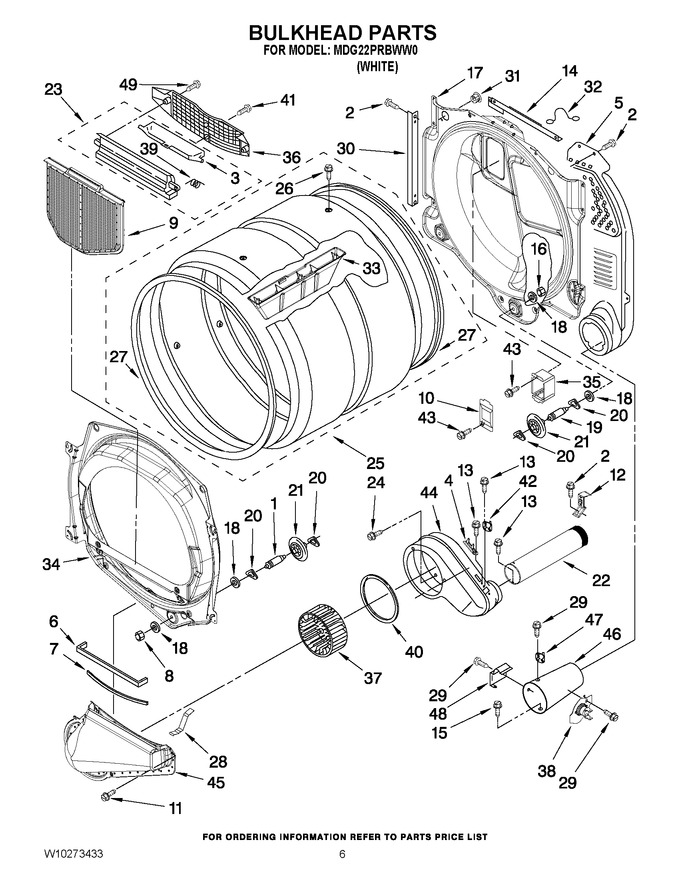

03 - Bulkhead Parts
04 - W10135231 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W10181925 | Door, Lint Screen |
|
$ 18.96 | |||||
| 4 | WP3392519 | Thermal Fuse (91°c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Foam-seal (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 14 | W10118337 | Bracket-bulkhead Upper Mounting (Replaces: 8571651) |
|
- | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 356.42 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP8563728 | Exhaust Pipe (Replaces: 8563728) |
|
$ 144.84 | |||||
| 23 | W11197085 | Housing, Outlet Assembly (Replaces: W10181928) |
|
$ 44.99 | |||||
| 24 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 25 | W10865330 | Complete Drum Assembly (Replaces: W10153420) |
|
$ 393.40 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP8066208 | Clip-spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 29 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 30 | 8519221 | Channel, Bracket Rear Bulkhead |
|
- | |||||
| 31 | 8529007 | Plug, Rear Bulkhead |
|
$ 78.87 | |||||
| 32 | WP3401707 | Wire Jumper (Replaces: 3401707) |
|
$ 86.59 | |||||
| 33 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 146.31 | |||||
| 34 | 8565061 | Bulkhead, Front |
|
$ 253.62 | |||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 36 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 36.90 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 38 | WP8573713 | Thermal Cut-off (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 40 | WP697770 | Foam-seal (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 41 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 46 | WP8573824 | Funnel-burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 47 | WP3391912 | Thermostat, High-limit 255°f (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 49 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 |
