01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10135231 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

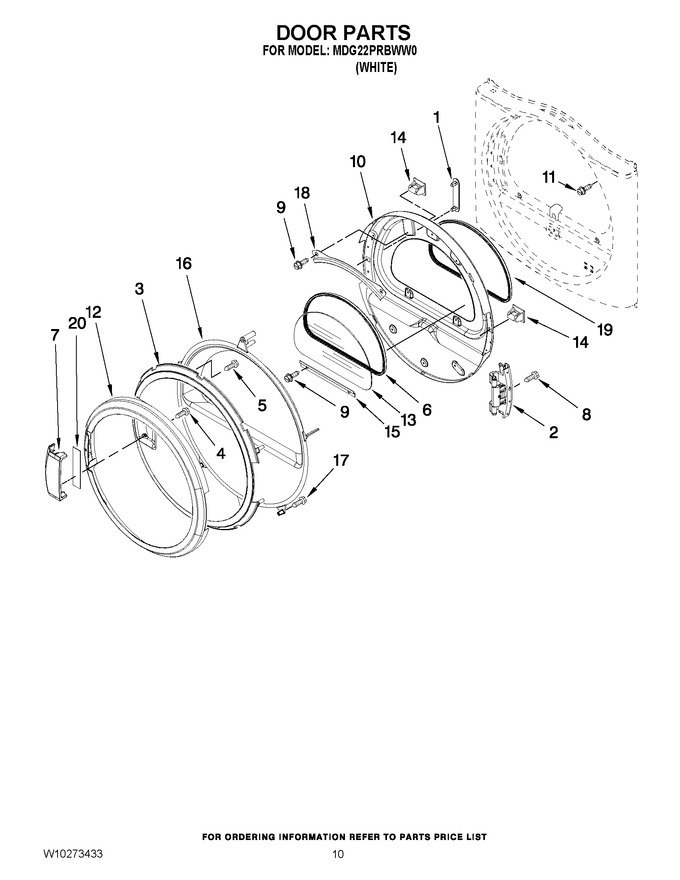

1	WPW10256915		Hinge Hole Cover (inner Door)   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door Hinge Assembly   (Replaces: 8578887)			Immediately	$ 232.48
3	W11700543		Assembly, Door Intermediate   (Replaces: W10137467)				$ 283.09
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	3400618		Screw				$ 67.94
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	W10850397		Handle, Door (includes Illus. 20.)   (Replaces: W10117477)				$ 36.50
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	WPW10164062		Door Assembly (inner) (includes Illus. 1,14 & 19)   (Replaces: W10259900)				$ 354.07
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	W11661105		Door, Outer Ring   (Replaces: W10112916)				$ 179.66
13	WPW10286878		Window   (Replaces: 8565117)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer-lower   (Replaces: 8519354)			Immediately	$ 18.01
16	WP8580059		Door,intermediate   (Replaces: 8580059)				$ 107.50
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
18	8519356		Retainer, Upper		Appelez-nous	-
19	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
20	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 8.31
