SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

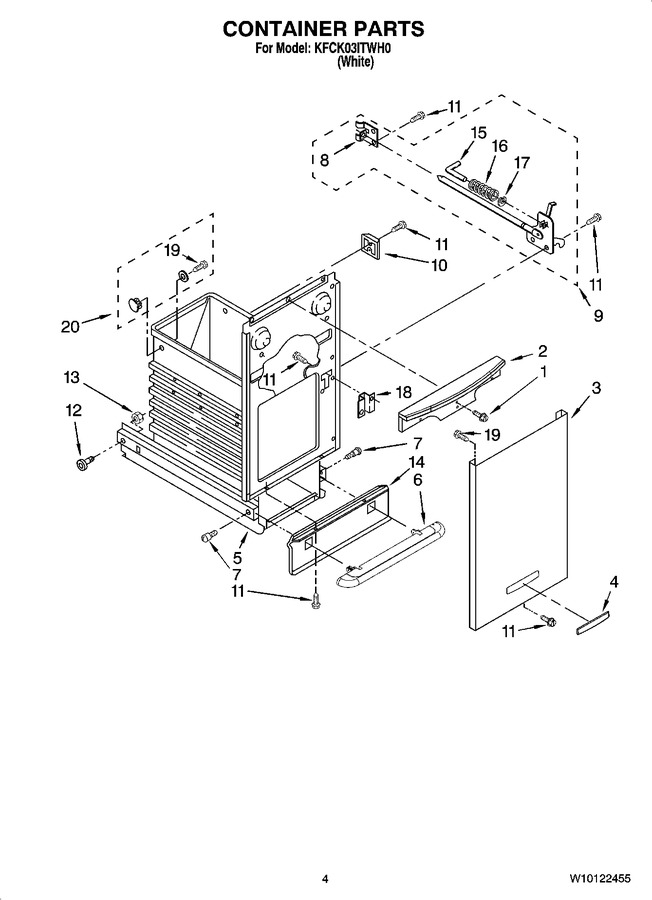

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400888		Screw (2)   (Replaces: 3400888)				$ 7.50
2	WP9871267		Handle, Container (white)   (Replaces: 9871235)				$ 301.60
3	9872238W		Panel, Container (white)		Appelez-nous	-
4	W10021860		Nameplate				$ 109.94
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 510.52
6	9871989W		Pedal, Foot (white)		Appelez-nous	-
7	WP780263		Screw, Shoulder 8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
8	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
9	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
10	9871125		Spring, Safety Switch				$ 29.37
11	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
12	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
13	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
14	W10917704		Plate, Toe Guard (white)   (Replaces: 9871030)		Appelez-nous	-
15	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
16	775736		Spring, Latch				$ 93.80
17	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
18	775665		Plate, Latch				$ 62.39
19	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
20	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
