SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts


04 - Container Parts

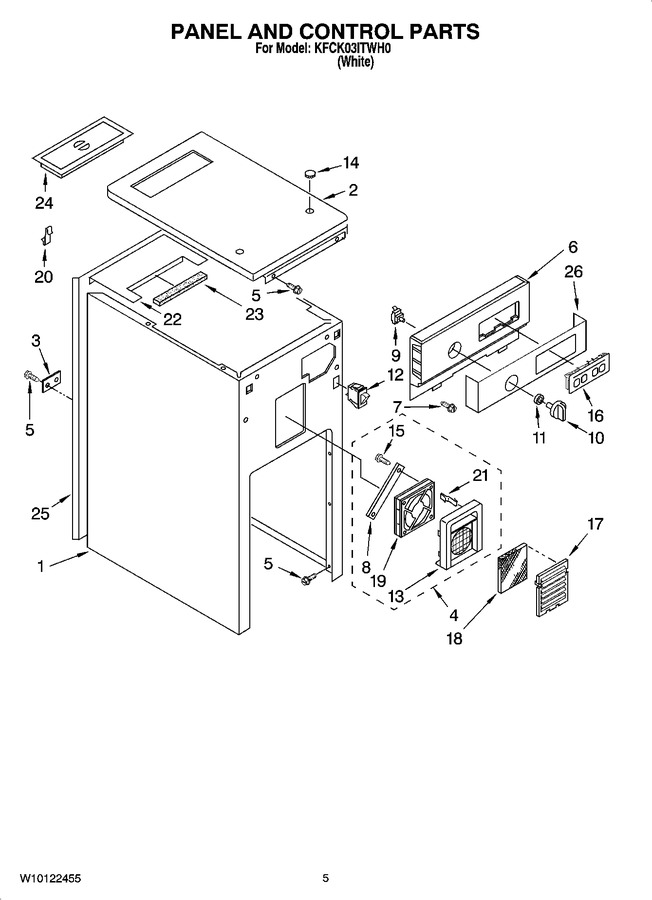

05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9870913		Cabinet (white)   (Replaces: 9870913)				$ 298.34
2	9871075		Top, Cabinet (white)		Appelez-nous	-
3	775676		Plate, Power Cord		Appelez-nous	-
4	9871893		Fan Mount Assembly				$ 348.34
5	WP489478		Screw, 8 X 1/2ab (6)   (Replaces: 489478)				$ 8.18
6	9871746		Escutcheon, Control (white)		Appelez-nous	-
7	246131		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
8	4152703		Strap, Fan				$ 75.32
9	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
10	WP9871799		Knob, Rotary Switch (white)   (Replaces: 9871799)				$ 67.23
11	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
12	WP4387911		Switch, Drawer   (Replaces: 4152058)			Immediately	$ 41.64
13	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
14	4151479		Plug, Hole (white)		Appelez-nous	-
15	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
16	9872326W		Switch Assembly (white)		Appelez-nous	-
17	9870911		Cover, Air Freshener (white)				$ 49.04
18	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
19	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
20	4151897		Clip, Wire				$ 7.40
21	4151897		S-clip				$ 7.40
22	780438		Plate, Bag Storage (includes No. 23)		Appelez-nous	-
23	776780		Barrier, Glass		Appelez-nous	-
24	00608739		Lid, Bag Storage (white)   (Replaces: 608739)				$ 300.66
25	9870863		Panel, Back		Appelez-nous	-
26	9872198W		Insert, Escutcheon (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
