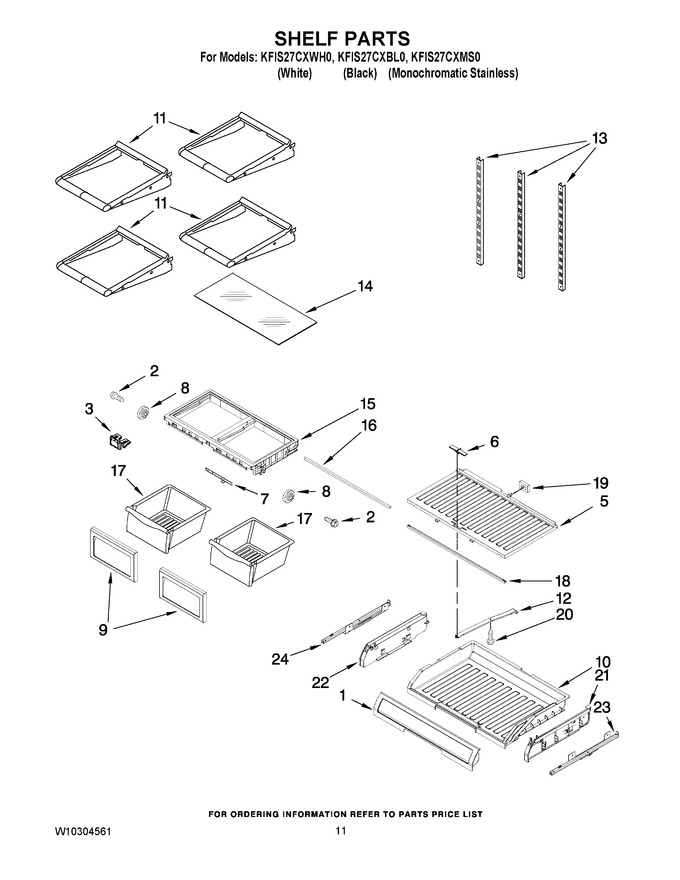

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10278935		Lid Assembly, Pantry				$ 37.49
2	67006692		Screw   (Replaces: 12991401)				$ 10.79
3	W10119222		Knob, Humidity				$ 14.09
5	W10276693		Pantry, Top				$ 66.14
6	W10276721		Knob, Pantry Temp		Appelez-nous	-
7	W10119217		Slide, Humidity		Appelez-nous	-
8	12756701		Roller, Crisper Frame		Appelez-nous	-
9	W10276729		Front, Crisper				$ 162.97
10	W10276689		Pan, Pantry				$ 61.68
11	W10205737		Shelf, Stationary   (Replaces: 12654710)				$ 304.16
12	W10276723		Arm, Pantry Control		Appelez-nous	-
13	W10268264		Ladder (3)				$ 31.95
14	W10279105		Glass, Crisper				$ 127.82
15	W10276725		Frame, Crisper				$ 108.19
16	W10490807		Brace, Crisper   (Replaces: W10119258)				$ 101.42
17	W10276727		Pan, Crisper (2)				$ 69.76
18	WP12227305WD		Brace, Pantry   (Replaces: 12227305WD)				$ 108.36
19	W10279104		Gasket, Pantry		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
21	W10276661		Endcap, Pantry(rh)				$ 28.04
22	W10276687		Endcap, Pantry(lh)				$ 35.93
23	W10132652		Slide, Pantry(rh)   (Replaces: W10291371)				$ 256.18
24	WPW10132653		Slide, Pantry(lh)   (Replaces: W10291372)				$ 330.28
