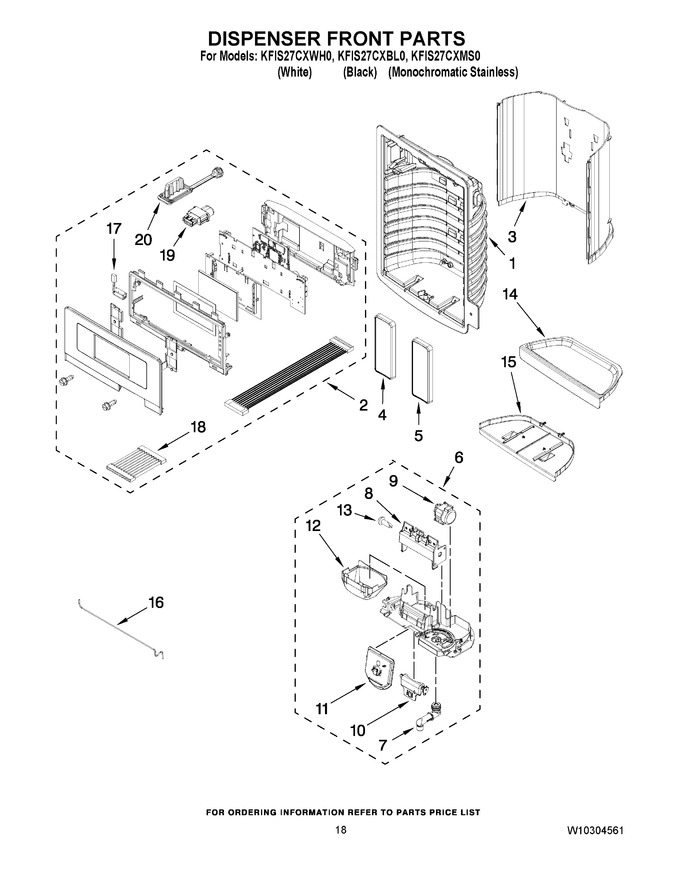

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10282649		Ui Assembly (white)		Appelez-nous	-
2	W10282650		Ui Assembly (black)		Appelez-nous	-
2	W10278975		Ui Assembly (stainless)		Appelez-nous	-
3	W10268792		False Wall, Dispenser (stainless)		Appelez-nous	-
3	W11045975		False, Wall, Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
3	W11045976		False, Wall, Dispenser (black)   (Replaces: W10233560)				$ 43.18
4	W10270549		Pad, Ice (white)		Appelez-nous	-
4	WPW10368730		Pad, Ice (nickel)   (Replaces: W10270552)			Immediately	$ 319.47
4	W10368729		Pad, Ice (black)   (Replaces: W10270550)				$ 308.78
5	W10270553		Pad, Water (white)		Appelez-nous	-
5	WPW10368730		Pad, Water (nickel)   (Replaces: W10270556)			Immediately	$ 319.47
5	W10270554		Pad, Water (black)		Appelez-nous	-
6	WPW10353552		Separator Assembly   (Replaces: W10278973)				$ 166.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 104.67
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	W10289518		Tray, Dispenser (white)		Appelez-nous	-
14	WPW10305897		Tray, Dispenser (stainless)   (Replaces: W10267864)				$ 84.81
14	W10289519		Tray, Dispenser (black)				$ 62.39
15	W10267860		Slide Tray, Dispenser (white)		Appelez-nous	-
15	W10267861		Slide Tray, Dispenser (black)				$ 74.39
15	WPW10267863		Slide, Tray Dispenser (apollo Grey)   (Replaces: W10267863)				$ 73.22
16	W10180827		Tube, Water		Appelez-nous	-
17	W10143532		Led		Appelez-nous	-
18	W10193350		Harness, Jumper				$ 56.57
19	W10278979		Usb Harness		Appelez-nous	-
20	W10309116		Cover, Usb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
