02 - Refrigerator Door


03 - Freezer Door


04 - Cabinet


05 - Liner


06 - Interior


07 - Breaker And Control


08 - Unit


09 - Ice Maker , Miscellaneous

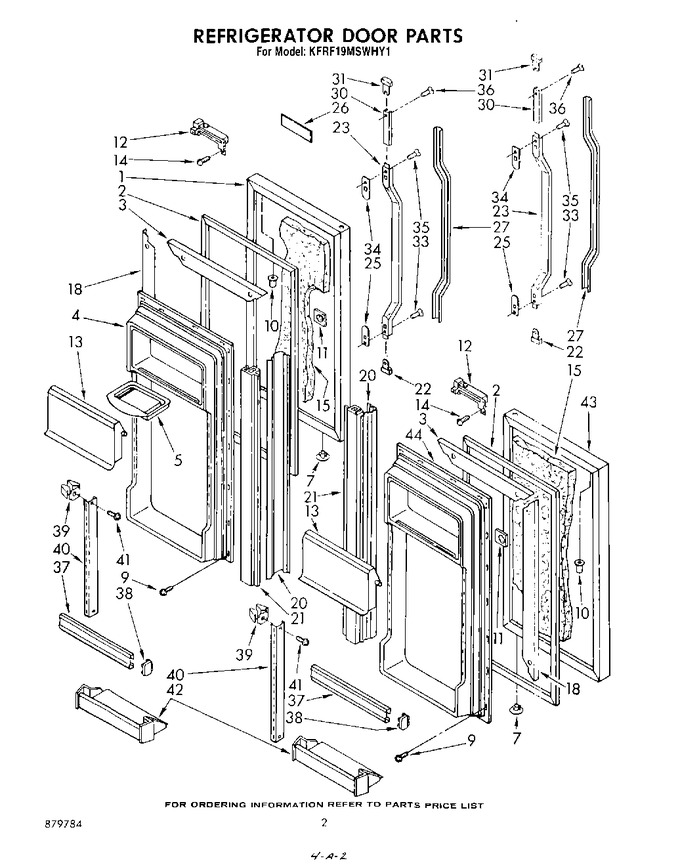

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107102		Door, Refrigerator (r.h.) (also Order Item 15) (toast)		Appelez-nous	-
1	1107103		Door, Refrigerator (r.h.) (also Order Item 15) (platinum)		Appelez-nous	-
1	1107211		Door, Refrigerator (r.h.) (also Order Item 15) (white)		Appelez-nous	-
1	1107104		Door, Refrigerator (r.h.) (also Order Item 15) (almond)		Appelez-nous	-
2	992582		Gasket, Refrigerator Door (2)		Appelez-nous	-
3	992580		Retainer Gasket, Top & Bottom (2)		Appelez-nous	-
4	1101508		Interior Door Panel (r.h.)		Appelez-nous	-
5	520747		Tray, Butter		Appelez-nous	-
7	534927		Plug, Hole (2) (white)		Appelez-nous	-
7	989197		Plug, Hole (2) (almond)		Appelez-nous	-
7	1100196		Hole Plug (2) (toast)		Appelez-nous	-
7	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	509929		Cap, Hinge Sleeve		Appelez-nous	-
11	941242		Screw Anchor		Appelez-nous	-
12	991877		Door Closer (2)		Appelez-nous	-
13	1107288		Door, Butter		Appelez-nous	-
14	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 8.28
15	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
18	986008		Retainer, Gasket (side)		Appelez-nous	-
20	992581		Retainer, Gasket Mullion (2)		Appelez-nous	-
21	1101510		Door Gasket, Mullion (2)		Appelez-nous	-
22	1107227		Cap, Handle		Appelez-nous	-
23	1107215		Handle Center		Appelez-nous	-
25	1107325		Shim, Handle		Appelez-nous	-
26	1107915		Insert, Nameplate		Appelez-nous	-
27	1107233		Insert, Handle		Appelez-nous	-
27	1107929		Insert, Handle		Appelez-nous	-
30	1107240		Retainer, Insert		Appelez-nous	-
31	1107341		End Cap, Insert Retainer		Appelez-nous	-
33	488923		Screw (repair)		Appelez-nous	-
33	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.98
34	1107651		Spacer, Handle		Appelez-nous	-
35	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
36	489075		Screw, 10-32 X 5/8		Appelez-nous	-
37	1107299		Trim, Door Shelf		Appelez-nous	-
38	1107300		Retainer, Door Trim (2)		Appelez-nous	-
39	537095		Clip, Expansion (4)		Appelez-nous	-
40	839430		Ladder, Door Shelf (2)		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 8.28
42	1107309		Door Shelf, Cantilever (2)		Appelez-nous	-
43	1107706		Door, Refrigerator (l.h.) (also Order Item 15) (platinum)		Appelez-nous	-
43	1107212		Door, Refrigerator (l.h.) (also Order Item 15) (white)		Appelez-nous	-
43	1107707		Door, Refrigerator (l.h.) (also Order Item 15) (almond)		Appelez-nous	-
43	1107705		Door, Refrigerator (l.h.) (also Order Item 15) (toast)		Appelez-nous	-
44	1101512		Interior Door Panel (l.h.)		Appelez-nous	-
