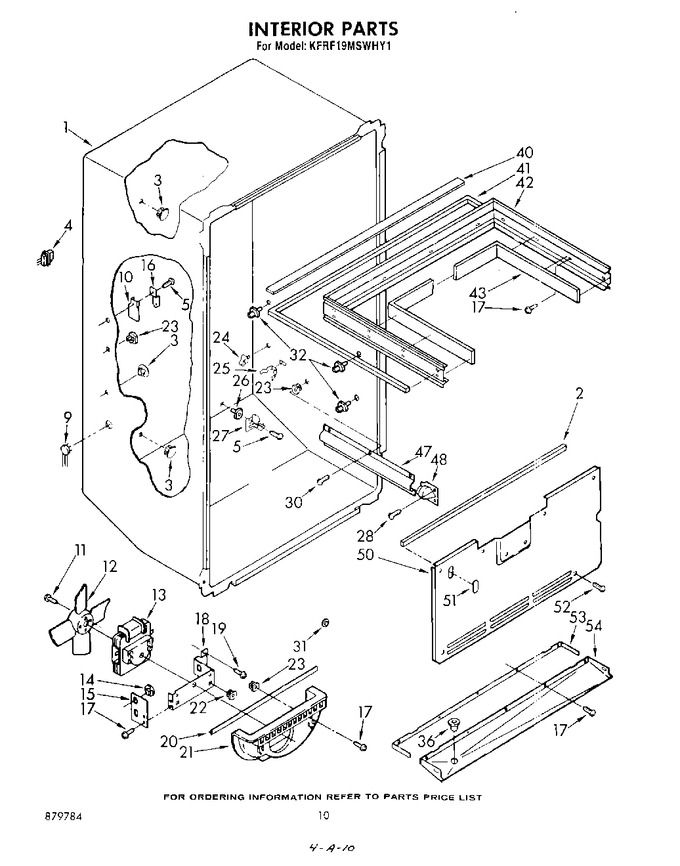

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 1114216 | Air Baffle |
|
- | |||||
| 3 | 519890 | Plug, Hole (5) |
|
- | |||||
| 4 | 481782 | Wiring, Liner (defrost Timer) |
|
- | |||||
| 5 | WP681414 | Screw, 10-12 X 3/8 (2) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 9 | 481658 | Wiring, Liner (ice Maker) |
|
- | |||||
| 10 | 538532 | Screw Grommet |
|
- | |||||
| 11 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 12 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 13 | SM999 | Motor, Evaporator Fan (Replaces: 938372) |
|
Immediately | $ 30.26 | ||||
| 14 | 548268 | Grommet, Fan Mounting (3) |
|
- | |||||
| 15 | 548263 | Bracket, Fan Mounting |
|
- | |||||
| 16 | 538533 | Support Clip |
|
- | |||||
| 17 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 18 | 548264 | Bracket, Fan Mounting (single) |
|
- | |||||
| 19 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.92 | |||||
| 20 | 986018 | Gasket, Sealing |
|
- | |||||
| 21 | 1114214 | Scroll, Fan |
|
- | |||||
| 22 | 538449 | Grommet, Screw (2) |
|
- | |||||
| 23 | 842339 | Grommet |
|
- | |||||
| 24 | 839213 | Stud, Support (2) |
|
$ 295.15 | |||||
| 25 | 533998 | Speed Clip, Light Lens (3) |
|
- | |||||
| 26 | 944454 | Screw, Grommet |
|
- | |||||
| 27 | 842436 | Support, Evaporator (2) |
|
- | |||||
| 28 | WP488729 | Screw, 8 X 1/2 (2) (Replaces: 488783) |
|
Immediately | $ 8.28 | ||||
| 30 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 31 | 1105243 | Cap Nut (20) |
|
- | |||||
| 32 | 528864 | Shelf Stud |
|
- | |||||
| 36 | 986661 | Fitting, Drain Pan |
|
- | |||||
| 40 | 991925 | Gasket, Sealing |
|
- | |||||
| 41 | 991280 | Gasket, Sealing |
|
- | |||||
| 42 | 986024 | Track, Compartment Separator |
|
- | |||||
| 43 | 982907 | Gasket, Sealing (2) |
|
- | |||||
| 47 | 981085 | Cover, Tube |
|
- | |||||
| 48 | 839826 | Cover, Tub Entry |
|
- | |||||
| 50 | 1114213 | Cover, Evaporator |
|
- | |||||
| 51 | 835649 | Plug, Hole |
|
- | |||||
| 52 | WP488729 | Screw, 8-15 X 1/2 (6) (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 53 | 986660 | Gasket, Drain Pan |
|
- | |||||
| 54 | 986659 | Pan, Drain |
|
- |
