SELECT A DIAGRAM

01 - Cover

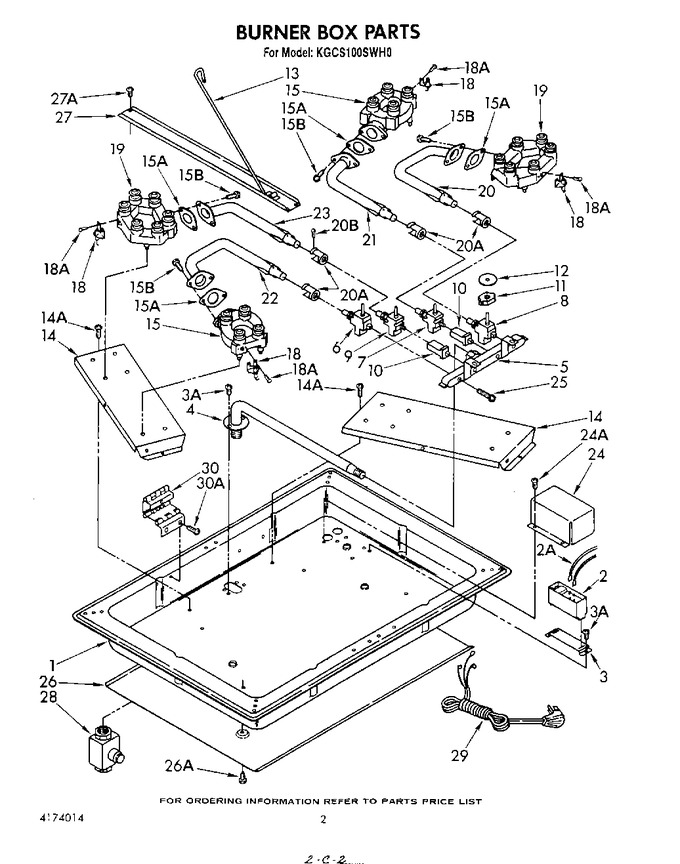

02 - Burner Box Parts


03 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4169247		Box, Burner		Appelez-nous	-
2	4169245		Ignitor Wire (27`` (2))		Appelez-nous	-
2	4169249		Module, Spark		Appelez-nous	-
2	4169246		Ignitor Wire (43``(2))		Appelez-nous	-
3	4169250		Bracket, Spark Module		Appelez-nous	-
3	4159448		Screw, Drive Type Ab (bracket Mounting)		Appelez-nous	-
4	4169251		Manifold, Inlet		Appelez-nous	-
5	4169252		Manifold, Control		Appelez-nous	-
6	4169253		Valve, Daisy (bolt Thru) (includes Orifice Hood)		Appelez-nous	-
7	4173223		Valve, Daisy (r.r.) (includes Orifice Hood)		Appelez-nous	-
8	4169255		Valve, Power (r.f.) Bolt Thru (includes Orifice Hood)		Appelez-nous	-
9	4173222		Valve, Power (l.r.) (includes Orifice Hood)		Appelez-nous	-
10	4169257		Extension, Valve 1/8 Npt (2)		Appelez-nous	-
11	4168745		Switch, Valve (4)				$ 12.76
12	WP3188425		Washer, Rubber 5/16`` X 1 1/2`` (4)   (Replaces: 4166436)				$ 86.74
13	4169260		Rod, Top Support		Appelez-nous	-
14	4159465		Screw, Drive (bracket Mounting)		Appelez-nous	-
14	4169262		Bracket, Burner Base (2)		Appelez-nous	-
15	4159323		Screw, Venturi Mounting (2)		Appelez-nous	-
15	4166263		Gasket, Venturi		Appelez-nous	-
15	4169263		Daisy Burner (l.f. & R.r.) (includes Illus. 15a & 15b)		Appelez-nous	-
18	WP313808		Screw, Drive Type D (ignitor Mounting)   (Replaces: 4159457)				$ 7.47
18	4175453		Ignitor, Direct Spark   (Replaces: 4169265)			Immediately	$ 255.88
19	4169266		Burner, Power (r.f. & L.r.) (includes Illus. 15a & 15b)		Appelez-nous	-
20	4169267		Venturi (r.f.) (includes Illus. 20a & 20b)		Appelez-nous	-
20	4159460		Screw, Drive		Appelez-nous	-
20	4173100		Mixer, Valve		Appelez-nous	-
21	4169269		Venturi (r.r.) (includes Illus. 20a & 20b)		Appelez-nous	-
22	4169268		Venturi L.f.) (includes Illus. 20a & 20b)		Appelez-nous	-
23	4169270		Venturi (l.r.) (includes Illus. 20a & 20b)		Appelez-nous	-
24	WPW10068250		Screw, Drive Type F (cover Mounting)   (Replaces: 4159431)				$ 3.84
24	4169271		Cover, Spark Module		Appelez-nous	-
25	4169277		Bolt, Gas Valve		Appelez-nous	-
26	4159465		Screw, Shield Mounting (4)		Appelez-nous	-
26	4173093		Shield, Heat		Appelez-nous	-
27	4159448		Screw, Drive Type Ab (strut Mounting)		Appelez-nous	-
27	4173101		Strut, Top Support (includes Illus. 13)		Appelez-nous	-
28	4167273		Regulator, Pressure		Appelez-nous	-
29	4169261		Power Cord		Appelez-nous	-
30	4159465		Screw, Drive (hinge Mounting) (4)		Appelez-nous	-
30	4169248		Hinge, Cooktop (2)		Appelez-nous	-
	LIT4174015		Instructions, Installation		Appelez-nous	-
	LIT4174014		Repair Parts List		Appelez-nous	-
	LIT4177812		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
