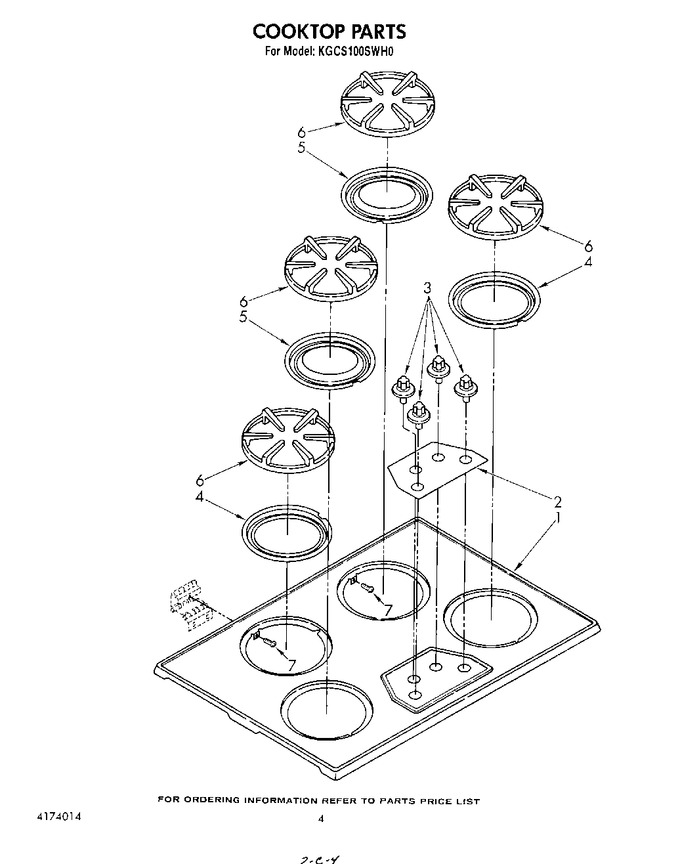

03 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4173069 | Cooktop (brushed Chrome) |
|
- | |||||
| 1 | 4173067 | Cooktop (almond) |
|
- | |||||
| 1 | 4173068 | Cooktop (white) |
|
- | |||||
| 1 | 4173070 | Cooktop (onyx Black) |
|
- | |||||
| 2 | 4169278 | Nameplate |
|
- | |||||
| 3 | 4169279 | Knob, Control (4) |
|
- | |||||
| 4 | 4169274 | Bowl, Drip (2) (power Burner) |
|
- | |||||
| 5 | 4169275 | Bowl, Drip (2) (daisy Burner) |
|
- | |||||
| 6 | 4169276 | Grate, Cooktop (4) |
|
- | |||||
| 7 | WPW10068250 | Screw, Hinge To Cooktop (2) (Replaces: 4159431) |
|
$ 3.84 | |||||
| 7 | 4164344 | Hardware, Installation |
|
- |
