SELECT A DIAGRAM

Diagram for 01 - Cabinet Assy, Rear Panel & Power Cord
01 - Cabinet Assy, Rear Panel & Power Cord

Diagram for 02 - Clothes Drum & High Limit Thermostat
02 - Clothes Drum & High Limit Thermostat

Diagram for 03 - Control Panel & Controls
03 - Control Panel & Controls

Diagram for 04 - Door Sw/heating Elem & Safety Tstat
04 - Door Sw/heating Elem & Safety Tstat

Diagram for 05 - Loading Door
05 - Loading Door

Diagram for 06 - Motor & Drum Belt
06 - Motor & Drum Belt


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE81-08486A Filter Guard   (Replaces: 13613) Special Order $ 270.57

2 DD81-03826A Filter,lint   (Replaces: 13828) Special Order $ 127.88

3 13858 Assy,drum Shaft Appelez-nous -
4 13617 Filter Catch Appelez-nous -
5 13619 Pin,snap Appelez-nous -
6 13842 Drum Appelez-nous -
7 13621 Plate,drum Appelez-nous -
8 13633 High Limit Thermostat Appelez-nous -
9 Y00000000 See Note Ground Strap Appelez-nous -
10 Y00000000 See Note Rear Panel Appelez-nous -
NI DE81-05778A Support,w/gasket   (Replaces: 13829) Special Order $ 200.21

NI 13827 Pocket,lint Appelez-nous -
NI 13844 Shield,drum Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

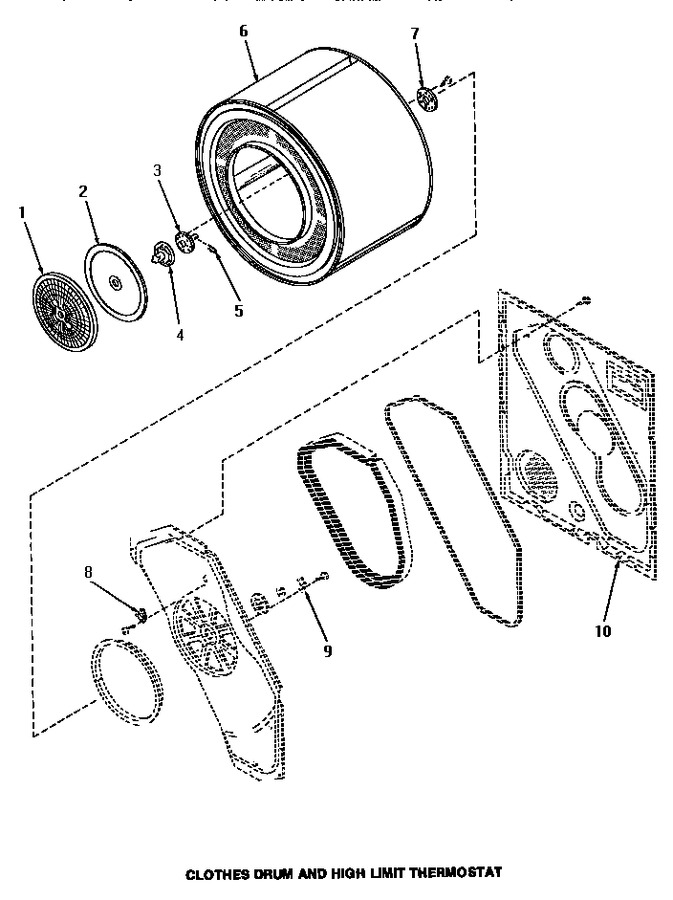

Diagram for ME8810
