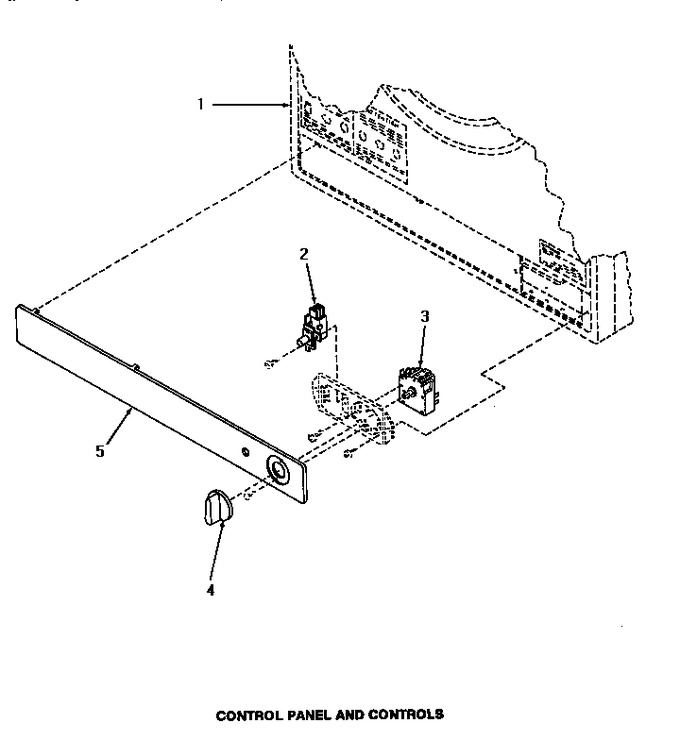

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Cabinet Assembly |
|
- | |||||
| 2 | 13860 | Assy,start Switch |
|
- | |||||
| 3 | 13609 | Timer |
|
- | |||||
| 4 | 13610 | Knob,timer |
|
- | |||||
| 5 | 13636 | Plate,control |
|
- | |||||
| NOTE: | As Of August 1987 Model Number Me8830 Changed To Me8810. Me8810 Is Totally Compatible With Ma8800 Contempomate Washer Just As Me8830 Was, But Some Replacement |
|
- |
