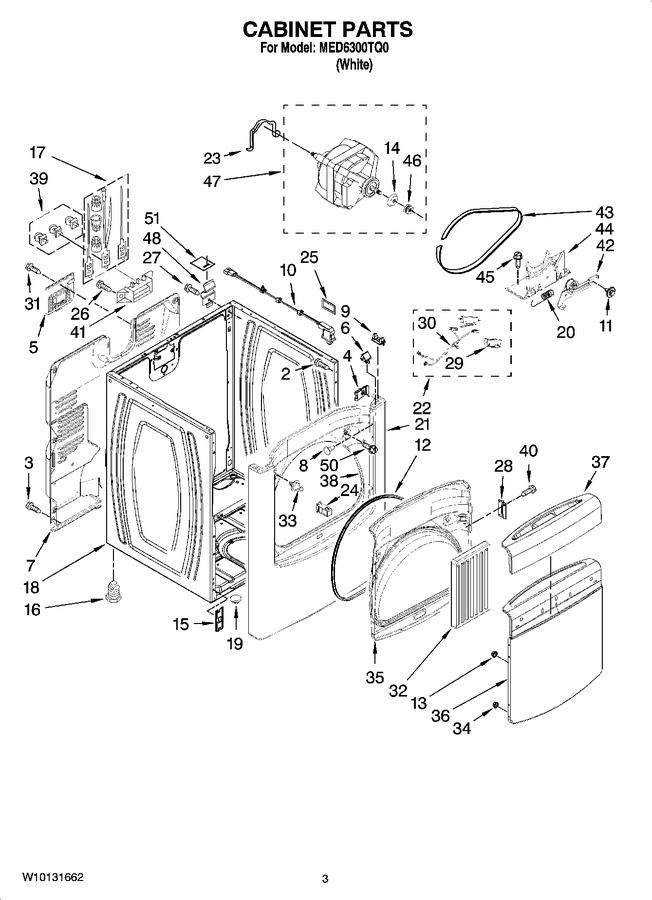

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10007520 | Clip, Ground (2) |
|
$ 30.94 | |||||
| 5 | W10110241 | Cover, Block |
|
$ 43.62 | |||||
| 6 | WP8576625 | Lock-top Front (2) (Replaces: 8576625) |
|
$ 7.60 | |||||
| 7 | 8558830 | Panel, Rear |
|
$ 139.44 | |||||
| 8 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 9 | WP8568303 | Locator, Snap Down (Replaces: 8568303) |
|
$ 7.94 | |||||
| 10 | W10702726 | Door Switch Assembly (Replaces: 3978977) |
|
$ 107.79 | |||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10239307 | Seal, Door (Replaces: 8575027) |
|
$ 141.27 | |||||
| 13 | WP488627 | Pal Nut (4) (Replaces: 342055) |
|
$ 8.11 | |||||
| 14 | 8578538 | Restrainer, Belt |
|
- | |||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 39) |
|
Immediately | $ 106.04 | ||||
| 18 | 8557569 | Cabinet |
|
- | |||||
| 19 | 8578560 | Hole Plug |
|
$ 95.94 | |||||
| 20 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 21 | 8565029 | Panel, Front |
|
- | |||||
| 22 | WP8566208 | Switch Assembly (Replaces: 8566208) |
|
$ 104.98 | |||||
| 23 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 24 | WPW10111905 | Catch, Door Assembly (Replaces: 8572982) |
|
Immediately | $ 7.59 | ||||
| 25 | W10118614 | Seal, Door Switch |
|
- | |||||
| 26 | WP308685 | Screw, 10-16x1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 27 | WP3390631 | Screw, 8-18 X 1/2 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 28 | WP8565018 | Hinge, Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 29 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 30 | 8539897 | Belt-switch Jumper |
|
- | |||||
| 31 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 32 | W10050060 | Filler-door |
|
- | |||||
| 33 | W10295405 | Strike, Door (Replaces: 8572983) |
|
$ 115.09 | |||||
| 34 | WP308499 | Palnut (10) (Replaces: 308499) |
|
$ 7.30 | |||||
| 35 | 8565020 | Door Inner |
|
- | |||||
| 36 | W10116924 | Door Outer |
|
$ 75.34 | |||||
| 37 | W10111244 | Door Handle |
|
- | |||||
| 38 | W10044490 | Seal, Front Panel |
|
$ 34.05 | |||||
| 39 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 40 | WP488627 | Screw, 10-32 X 5/8 (Replaces: 342055) |
|
$ 8.11 | |||||
| 41 | WP3397659 | Block Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 42 | 8547174V | Pulley Assembly (Replaces: 8547174) |
|
Immediately | $ 29.26 | ||||
| 43 | WP8547168 | Belt, Drive (Replaces: 8547168) |
|
Immediately | $ 64.80 | ||||
| 44 | 8547166 | Base, Motor |
|
$ 34.74 | |||||
| 45 | 777849 | Bolt, 6-20 X 1 1/4 (Replaces: W10002600) |
|
$ 7.36 | |||||
| 46 | WP8066184 | Pulley, 60 Hz (Replaces: 8578565) |
|
Immediately | $ 51.02 | ||||
| 47 | WPW10463866 | Motor Assembly 60 Hz. (Replaces: 8566152) |
|
$ 356.49 | |||||
| 48 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 50 | W10100830 | Screw, 10-16 X 3/64 |
|
- | |||||
| 51 | 18849 | Pad-top Hinge |
|
$ 21.15 |
