SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

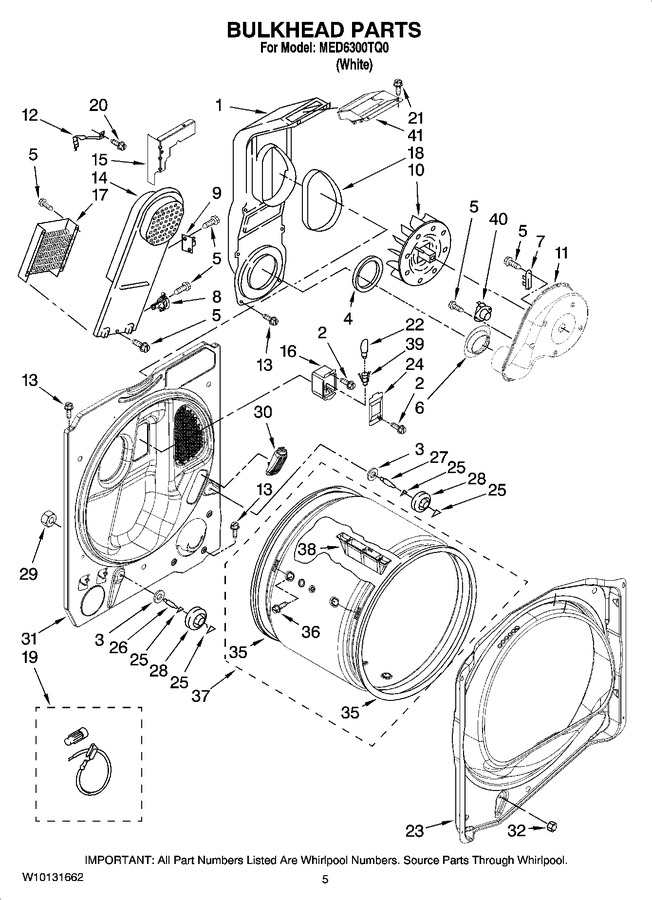

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8544805 | Lint Chute Assembly |
|
$ 121.83 | |||||
| 2 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 3 | W11236646 | Washer-support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | 8573836 | Shield, Exhaust |
|
$ 39.35 | |||||
| 7 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | WP8566498 | Thermostat, Hi-limit (Replaces: 8566498) |
|
$ 110.26 | |||||
| 9 | W10169881 | Kit Thermal Cut-off (includes Illus. 8) |
|
$ 156.40 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 186.85 | |||||
| 12 | 8546149 | Clip-heater Box |
|
- | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 8544801 | Box, Heater |
|
$ 113.75 | |||||
| 15 | W10053480 | Bracket, Lint Chute |
|
- | |||||
| 16 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 17 | WP8573069 | Element, Heater (Replaces: 8573069) |
|
$ 329.00 | |||||
| 18 | 8544813 | Seal |
|
$ 82.48 | |||||
| 19 | 279457 | Wire Kit, Terminal (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 21 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 22 | WP22002263 | Bulb (Replaces: 3406126) |
|
Immediately | $ 14.85 | ||||
| 23 | 8558890 | Bulkhead, Front |
|
- | |||||
| 24 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 25 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10359272 | Shaft (l.h.) (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 27 | WPW10359271 | Shaft, (r.h.) (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 28 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 29 | WPW10080190 | Nut, 3/8-16 (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 30 | 8576468 | Assembly, Sensor |
|
$ 41.52 | |||||
| 31 | 8557242 | Bulkhead, Rear |
|
$ 173.07 | |||||
| 32 | W11812294 | Nut 3/8-16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 35 | 280140 | Seal Drum (2) (Replaces: 8557277) |
|
Immediately | $ 73.88 | ||||
| 36 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.80 | ||||
| 37 | W10549615 | Drum, Assembly (Replaces: 8557270) |
|
$ 444.51 | |||||
| 38 | 8565688 | Baffle, Drum (3) |
|
$ 166.20 | |||||
| 39 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 76.81 | |||||
| 40 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 41 | 8544810 | Collar, Lint Chute |
|
$ 36.27 | |||||
| 4392901 | Paint, Pressurized Spray (12 Oz) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up (1/2oz.) (black) |
|
Immediately | $ 18.69 | |||||
| 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | |||||
| 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) |
|
$ 59.89 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 40.12 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | ||||||
| W10071550 | Dry Rack |
|
- |
