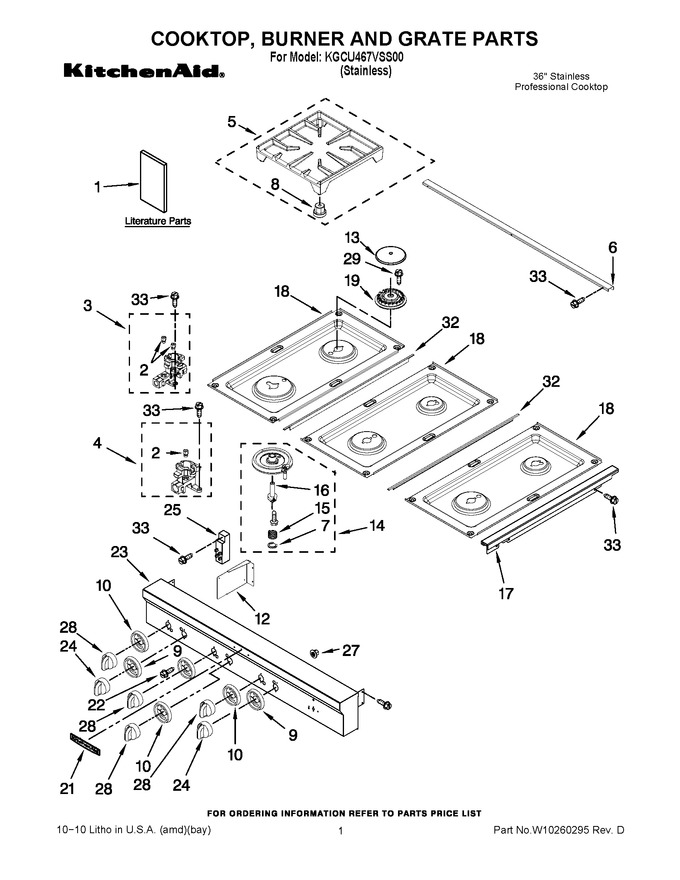

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10221132 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10271686 | Installation Instructions |
|
- | |||||
| 1 | W10284347 | Use & Care Guide |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10160179 | Orifice (high (lf, Rf)) |
|
$ 75.77 | |||||
| 2 | W10160185 | Orifice (low (lf, Rf)) |
|
$ 73.54 | |||||
| 2 | W10160232 | Orifice (lr,cf,rr) |
|
$ 45.77 | |||||
| 2 | W10791075 | Orifice (cr) (Replaces: W10282663) |
|
$ 103.68 | |||||
| 3 | WPW10160187 | Orifice Holder (dual - Lf, Rf) (Replaces: W10160187) |
|
$ 81.57 | |||||
| 4 | W10160234 | Orifice Holder (lr,cf,rr) |
|
$ 51.39 | |||||
| 4 | W10282659 | Orifice Holder (cr) |
|
$ 40.50 | |||||
| 5 | WPW10115928 | Grate, Burner (Replaces: W10115928) |
|
$ 201.41 | |||||
| 6 | W10269217 | Trim, Island |
|
$ 308.49 | |||||
| 7 | W10160825 | Clip, Electrode |
|
$ 52.85 | |||||
| 8 | W10185266 | Rubber, Foot (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 55.11 | |||||
| 10 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10367052 | Bracket, Spark Module (Replaces: W10137323) |
|
- | |||||
| 13 | WP8286816 | Cap, Burner (cr) (Replaces: 8286816) |
|
$ 110.74 | |||||
| 13 | WPW10115952 | Cap, Burner (lf & Rf) (Replaces: W10115952) |
|
$ 119.01 | |||||
| 13 | WPW10160229 | Cap, Burner (lr, Cf, Rr) (Replaces: W10160229) |
|
Immediately | $ 114.80 | ||||
| 14 | W10189082 | Base, Burner (lr, Cf, Rr) |
|
- | |||||
| 14 | WPW10282515 | Base, Burner (cr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 14 | WPW10320937 | Base, Burner (lf,rf) (Replaces: W10320937) |
|
$ 157.22 | |||||
| 15 | W10160826 | Spring, Electrode |
|
- | |||||
| 16 | WPW10145991 | Electrode (cr) (Replaces: W10145991) |
|
Immediately | $ 84.47 | ||||
| 16 | W10250406 | Electrode (rf, Lf) |
|
$ 30.27 | |||||
| 16 | WPW10160235 | Electrode (lr, Rr, Cf) (Replaces: W10160235) |
|
$ 42.08 | |||||
| 17 | W10226014 | Trim, Side (left) |
|
$ 261.16 | |||||
| 17 | W10226015 | Trim, Side (right) |
|
$ 263.19 | |||||
| 18 | W10189104 | Cooktop (left) |
|
$ 146.58 | |||||
| 18 | W10189101 | Cooktop (right) |
|
$ 345.78 | |||||
| 18 | W10272902 | Cooktop (center) |
|
- | |||||
| 19 | W10250458 | Burner Head (lr, Cf, Rr) |
|
- | |||||
| 19 | WPW10250459 | Burner Head (lf & Rf) (Replaces: W10250459) |
|
Immediately | $ 154.23 | ||||
| 19 | WPW10282515 | Burner Head (cr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 21 | W10201187 | Nameplate |
|
$ 91.98 | |||||
| 22 | W10018510 | Screw |
|
- | |||||
| 23 | W10131241 | Panel, Control |
|
$ 281.23 | |||||
| 24 | W11244176 | Knob, Control Rf,lf (Replaces: W10250389) |
|
$ 78.37 | |||||
| 25 | WP71002749 | Module, Spark (Replaces: 7431P039-60) |
|
$ 351.02 | |||||
| 27 | 7103P166-60 | Nut, Hex |
|
$ 18.56 | |||||
| 28 | W11177673 | Knob, Control (Replaces: W10250391) |
|
$ 90.55 | |||||
| 29 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 14.74 | ||||
| 32 | W10271524 | Strip, T |
|
$ 212.34 | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 |
