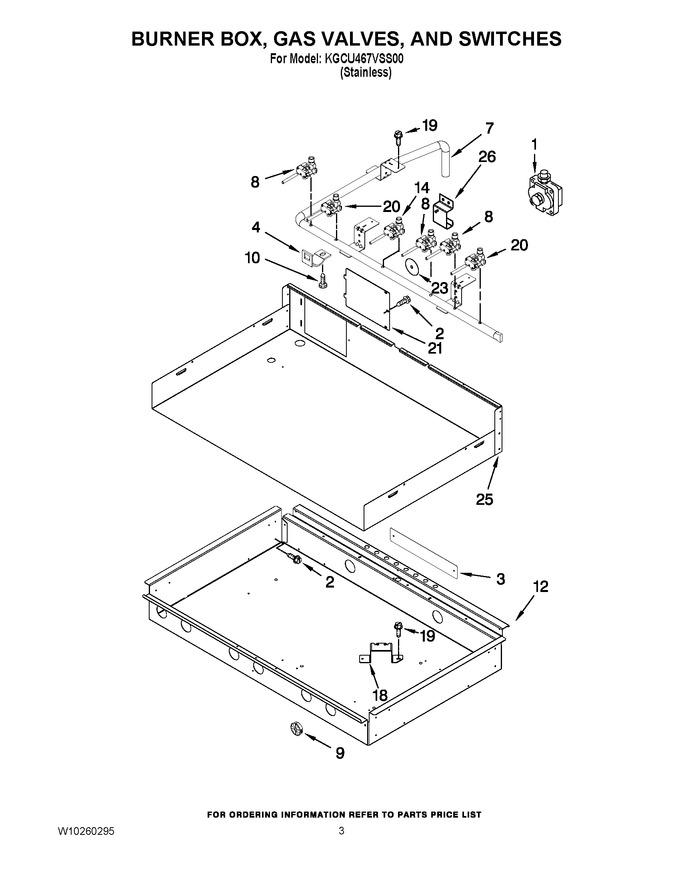

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759091 | Pressure Regulator (Replaces: 9759091) |
|
Immediately | $ 340.43 | ||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | W10250433 | Cover, Plate |
|
- | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 7 | W10115896 | Manifold |
|
$ 104.48 | |||||
| 8 | W10326645 | Valve, Single Lr,cf,rr |
|
$ 162.52 | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 12 | W10250425 | Burner Box Orifice Mounting |
|
- | |||||
| 14 | WPW10385583 | Valve, Single (cr) (Replaces: W10305286) |
|
Immediately | $ 332.10 | ||||
| 18 | W10280796 | Bracket, Burner ( Cr) |
|
- | |||||
| 18 | W10115929 | Bracket, Burner (lf,lr,cf,rf & Rr) |
|
- | |||||
| 19 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 20 | WPW10371235 | Valve, Gas Lf,rf (Replaces: W10305287) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 25 | W10189156 | Cover, Burner Box |
|
- | |||||
| 26 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| NI | W10115911 | Tubing, Gas (lf, Rf Simmer) |
|
$ 188.34 | |||||
| NI | W10115910 | Tubing, Gas (lr & Cf & Rr) |
|
$ 176.20 | |||||
| NI | W10280797 | Tubing, Gas Cr |
|
- |
