SELECT A DIAGRAM

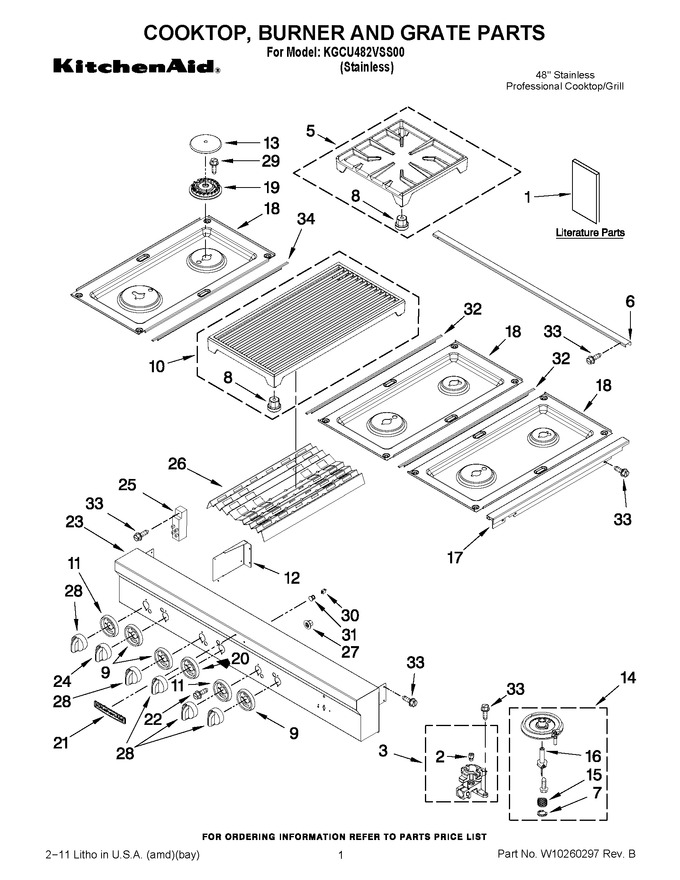

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10221132		Tech Sheet		Appelez-nous	-
1	W10284347		Use & Care Guide		Appelez-nous	-
1	W10271686		Installation Instructions		Appelez-nous	-
2	W10160219		Orifice (center Rear)		Appelez-nous	-
2	4456495		Orifice (grill)		Appelez-nous	-
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
2	W10160232		Orifice (lr,cf,rr)				$ 45.77
3	W10160234		Orifice Holder (lr,cf,rr)				$ 51.39
3	W10282659		Orifice Holder (center Rear)				$ 40.50
3	WPW10160187		Orifice Holder Lf,rf   (Replaces: W10160187)				$ 81.57
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269216		Trim, Island		Appelez-nous	-
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W11241676		Grate, Grill   (Replaces: W10221254)				$ 386.51
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WP8286816		Cap, Burner (center Rear)   (Replaces: 8286816)				$ 110.74
13	WPW10160229		Cap, Burner (lr, Cf, Rr)   (Replaces: W10160229)			Immediately	$ 114.80
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 119.01
14	W10282659		Base, Burner (center Rear)				$ 40.50
14	WPW10320937		Base, Burner (lr,rf)   (Replaces: W10320937)				$ 157.22
14	W10189082		Base, Burner (lr, Cf, Rr)		Appelez-nous	-
15	W10160826		Spring, Electrode (lr,lf,cf,rr,rf)		Appelez-nous	-
15	8286863		Spring, Electrode (center Rear)				$ 76.92
16	WPW10145991		Electrode (center Rear)   (Replaces: W10145991)			Immediately	$ 84.47
16	WPW10160235		Electrode (lr, Cf, Rr)   (Replaces: W10160235)				$ 42.08
16	W10250406		Electrode (lf,rf)				$ 30.27
17	W10226013		Trim, Side (left)		Appelez-nous	-
17	W10226012		Trim, Side (right)		Appelez-nous	-
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189101		Cooktop (right)				$ 345.78
18	W10189104		Cooktop (left)				$ 146.58
19	WPW10282515		Burner Head (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
19	W10250458		Burner Head (lr, Cf, Rr)		Appelez-nous	-
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 154.23
20	W10261514		Bezel, Grill		Appelez-nous	-
21	W10201187		Nameplate				$ 91.98
22	W10018510		Screw		Appelez-nous	-
23	W10910412		Panel, Control   (Replaces: W10131244)				$ 484.26
24	W11244176		Knob, Control (dual - Lf)   (Replaces: W10250389)				$ 78.37
25	N/P		Module, Spark		Appelez-nous	-
26	W10250469		Wave, Tray				$ 255.60
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10271524		Trim				$ 212.34
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	W10271524		Trim, T-strip				$ 212.34
