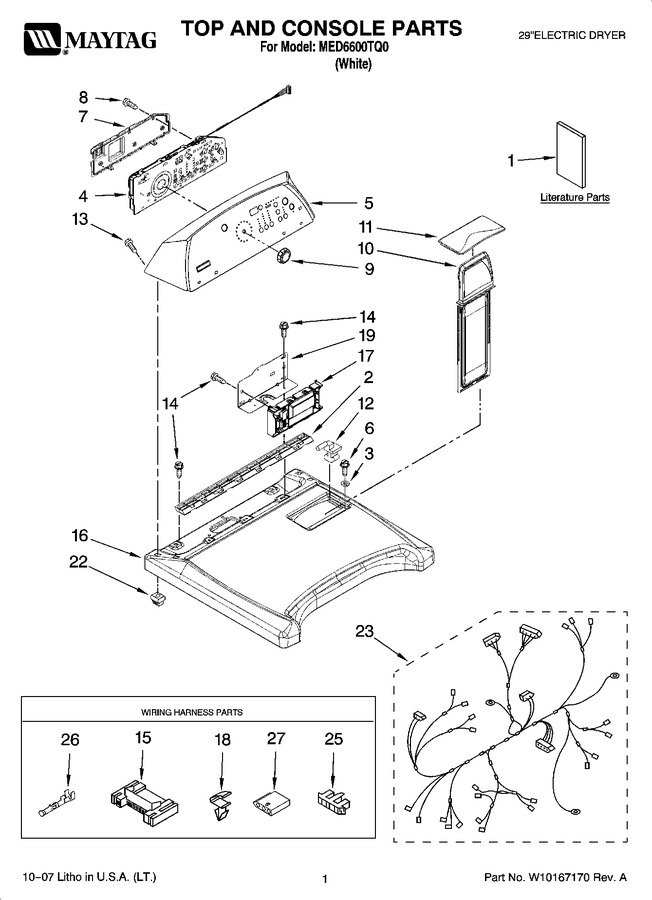

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165147		Sheet, Steam Tip		Appelez-nous	-
1	W10156040		Tech Sheet		Appelez-nous	-
1	W10160249		Guide, Quick Start		Appelez-nous	-
1	W10160250		Use & Care Guide		Appelez-nous	-
1	W10160247		Tip Sheet		Appelez-nous	-
2	8558863		Bracket, Console				$ 33.78
3	237446		Washer (top/chute)		Appelez-nous	-
4	W10051167		User Interface				$ 259.73
5	W10170903		Panel, Console		Appelez-nous	-
6	WP3196557		Screw, 8-18 X 5/8   (Replaces: 3196537)			Immediately	$ 7.95
7	8564265		Cover, Rear				$ 142.60
8	WP4449745		Screw, 6-19 X 3/64   (Replaces: W10003770)				$ 7.98
9	W10110196		Knob, Assembly				$ 46.56
10	WP8572270		Assembly, Lint Screen   (Replaces: 8572270)			Immediately	$ 104.35
11	W10044320		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: W10044480)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: W10044470)				$ 8.11
13	W10001580		Screw		Appelez-nous	-
14	WP33001882		Screw   (Replaces: 337686)				$ 83.71
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8565025		Top		Appelez-nous	-
17	W10111614		Control, Electronic		Appelez-nous	-
18	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
19	8563853		Bracket, Machine Controller		Appelez-nous	-
22	8558853		Grommet		Appelez-nous	-
23	W10141980		Harness Wiring		Appelez-nous	-
25	3936144		Connector				$ 21.22
26	WP94614		Terminal   (Replaces: 94614)				$ 8.05
27	3397269		Connector-timer				$ 25.55
