SELECT A DIAGRAM

01 - Top And Console Parts

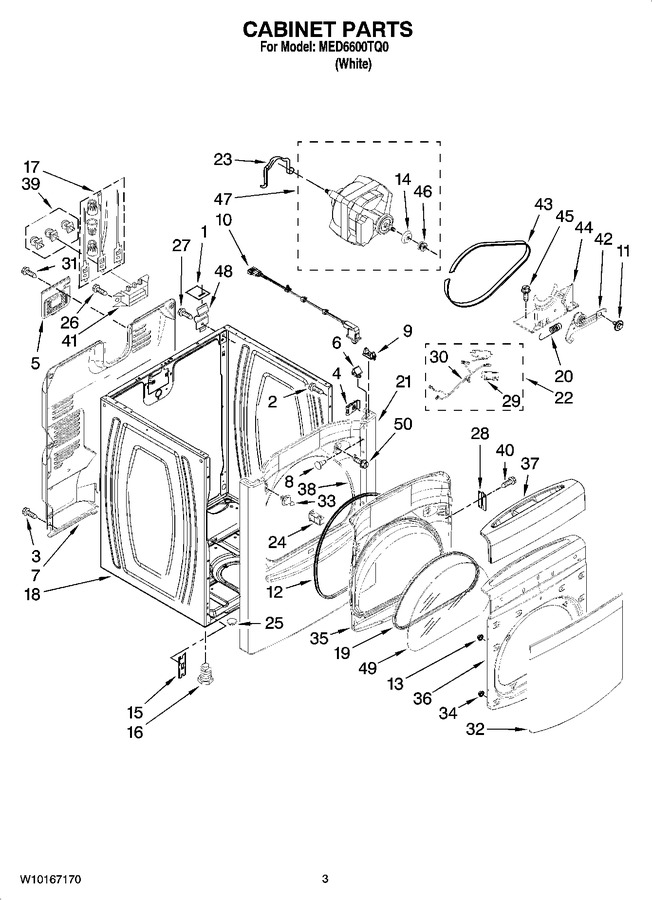

02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	18849		Pad-top Hinge				$ 21.15
2	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
4	W10007520		Clip, Ground (2)				$ 30.94
5	W10110241		Cover, Block				$ 43.62
6	WP8576625		Lock-top Front (2)   (Replaces: 8576625)				$ 7.60
7	W10140148		Panel, Rear				$ 139.84
8	WP3404413		Plug, Hole   (Replaces: 3404413)			Immediately	$ 8.35
9	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
10	W10702726		Door Switch Assembly   (Replaces: 3978977)				$ 107.79
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10239307		Seal, Door   (Replaces: 8575027)				$ 141.27
13	WP488627		Pal Nut (4)   (Replaces: 342055)				$ 8.11
14	8578538		Restrainer, Belt		Appelez-nous	-
15	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 16.34
16	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	279318		Terminal, Tinned & Brass (3) (includes Illus. 39)			Immediately	$ 106.04
18	8557569		Cabinet		Appelez-nous	-
19	W10076060		Gasket, Inner Door				$ 47.26
20	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
21	8565029		Panel, Front		Appelez-nous	-
22	WP8566208		Switch Assembly   (Replaces: 8566208)				$ 104.98
23	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
24	WPW10111905		Catch, Door Assembly   (Replaces: 8572982)			Immediately	$ 7.59
25	8578560		Plug, Hole				$ 95.94
26	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
27	WP3390631		Screw, 8-18 X 1/2   (Replaces: 3390631)				$ 8.25
28	WP8565018		Hinge, Assembly   (Replaces: 8565018)				$ 115.34
29	8564011		Bracket, Switch				$ 19.08
30	8539897		Belt-switch Jumper		Appelez-nous	-
31	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
32	W10116398		Window, Outer Door		Appelez-nous	-
33	W10295405		Strike, Door   (Replaces: 8572983)				$ 115.09
34	WP308499		Palnut (10)   (Replaces: 308499)				$ 7.30
35	8565037		Door Inner				$ 83.94
36	W10116925		Door Outer				$ 168.80
37	W10111249		Door Handle				$ 78.00
38	W10044490		Seal, Front Panel				$ 34.05
39	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 55.66
40	WP488627		Screw, 10-32 X 5/8   (Replaces: 342055)				$ 8.11
41	WP3397659		Block Terminal   (Replaces: 3397659)				$ 24.17
42	8547174V		Pulley Assembly   (Replaces: 8547174)			Immediately	$ 29.26
43	WP8547168		Belt, Drive   (Replaces: 8547168)			Immediately	$ 64.80
44	8547166		Base, Motor				$ 34.74
45	777849		Bolt, 6-20 X 1 1/4   (Replaces: W10002600)				$ 7.36
46	WP8066184		Pulley, 60 Hz   (Replaces: 8578565)			Immediately	$ 51.02
47	WPW10463866		Motor Assembly 60 Hz.   (Replaces: 8566152)				$ 356.49
48	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
49	8565015		Glass, Inner Door				$ 129.06
50	W10100830		Screw, 10-16 X 3/64		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
