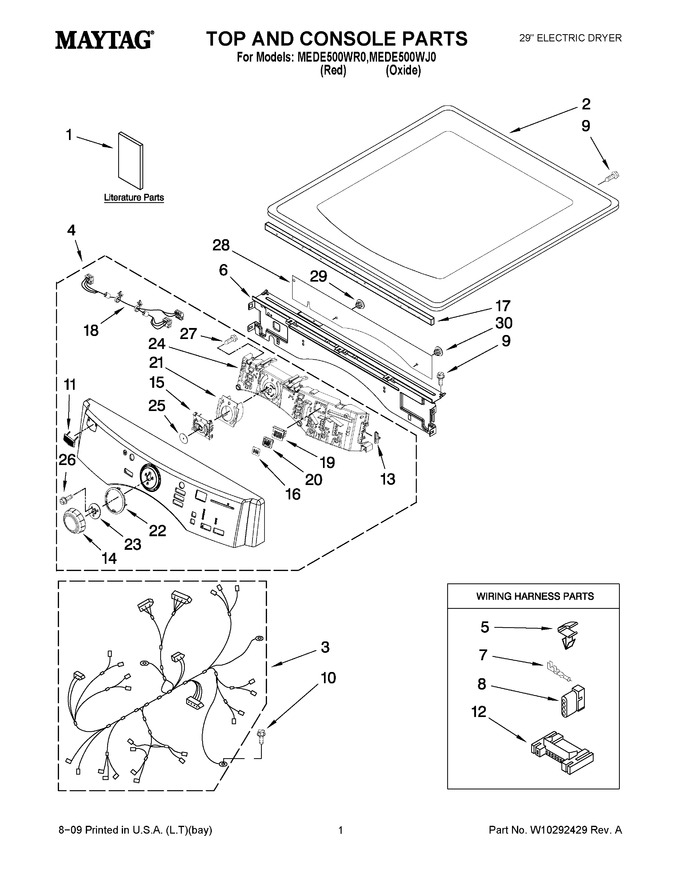

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10239302		Use & Care Guide		Appelez-nous	-
1	W10258376		Tech Sheet		Appelez-nous	-
1	W10255468		Installation, Instruction		Appelez-nous	-
2	W10164743		Top (oxide)				$ 42.44
2	W10249738		Top (red)				$ 131.95
3	W10251446		Harness, Main		Appelez-nous	-
4	W10269246		Panel, Console (include Buttons, Control Board & Item. 11 ) (oxide)				$ 397.20
4	WPW10269245		Panel, Console (include Buttons, Control Board & Item. 11 ) (red)   (Replaces: W10269245)				$ 450.96
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	W10215656		Bracket, Console (include, Item. 17)				$ 72.06
7	WP94614		Terminal   (Replaces: 94614)				$ 8.05
8	3936144		Plug, Terminal				$ 21.22
9	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
10	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 7.55
11	W10732500		Medallion   (Replaces: W10177245)				$ 45.43
12	3395683		Connector, Motor			Immediately	$ 54.45
13	W10214555		Plug, Connector Frame				$ 6.94
14	W10164576		Knob, Assembly				$ 56.77
15	W10170293		Guide, Light Cycle Internal				$ 94.31
16	W10171504		Foil-display				$ 13.42
17	W10112267		Foam Seal				$ 97.53
18	W10242907		Harness, Communication				$ 170.35
19	W10171502		Fram-light (guide Display)				$ 16.93
20	W10164578		Guide, Light (3-way Digital)				$ 15.96
21	W10170295		Frame-light Guide		Appelez-nous	-
22	W10164567		Cycle, Light Guide				$ 68.85
23	W10172298		Bushing, Knob				$ 13.40
24	W10269025		User-interface				$ 232.06
25	8572039		Seal, User Interface		Appelez-nous	-
26	W11230114		Screw   (Replaces: 8540513)				$ 13.94
27	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
28	W10215674		Shield, Console Bracket				$ 33.47
29	W10216201		Plug-hole, 1/4``		Appelez-nous	-
30	W10216202		Plug-hole, 5/16``		Appelez-nous	-
