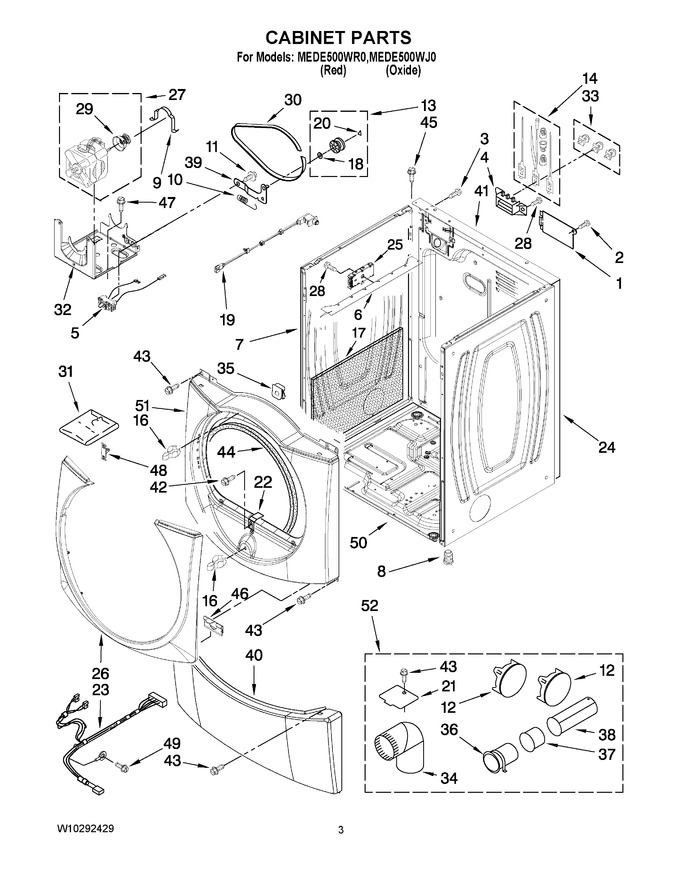

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
7	W10249768		Panel, Side (l.h.) (red)				$ 121.14
7	W10123956		Panel, Side (l.h.) (oxide)		Appelez-nous	-
8	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (include, Item. 33 )			Immediately	$ 106.04
16	279570		Strike, Door (2)   (Replaces: 696144)			Immediately	$ 8.89
17	W10123956		Sound Panel		Appelez-nous	-
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
19	W10128087		Door Switch Assembly				$ 95.53
20	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8529053		Ramp, Door				$ 51.37
23	W10242904		Harness, Digital Interface				$ 98.35
24	W10249769		Panel, Side (r.h.) (red)				$ 121.14
24	W10193959		Panel, Side (r.h.) (oxide)				$ 121.60
25	W10174746		Control Board				$ 307.29
26	W10221447		Trim Ring Assembly (oxide)				$ 140.03
26	W10271928		Trim Ring Assembly (red)				$ 122.74
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	8541503		Kit, Stack Assembly			Immediately	$ 43.18
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	62825		Clip, S-type (3)				$ 8.11
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10246285		Panel, Toe (oxide)				$ 101.34
40	W10250673		Panel, Toe (red)		Appelez-nous	-
41	W10244142		Panel, Rear		Appelez-nous	-
42	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
47	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
48	WPW10129065		Trim-clip Metal   (Replaces: W10129065)			Immediately	$ 12.24
49	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 7.55
50	W10239098		Base, Cabinet				$ 148.45
51	W10164915		Front Panel (include, Item. 44 ) (oxide)				$ 144.72
51	W10250671		Front Panel (include Item. 44) (red)		Appelez-nous	-
52	W10470674		Dryer Exhaust Kit (for Side & Btm Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
