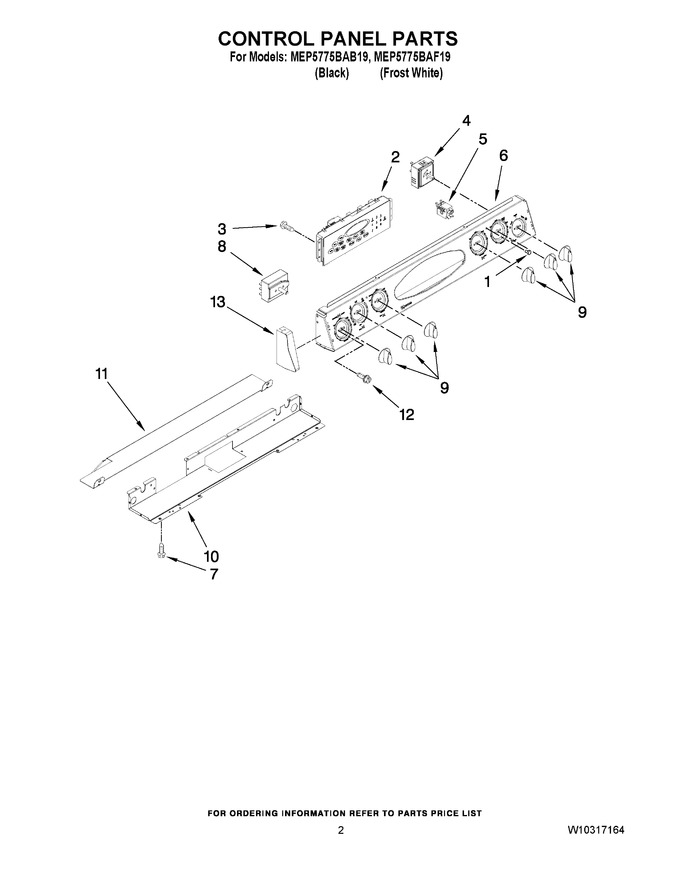

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7730P011-60		Lens   (Replaces: 7730P011-60)				$ 5.73
2	5701M881-60		Control W/overlay (black)				$ 606.65
2	5701M882-60		Control W/overlay (white)				$ 585.99
3	WP59002061		Screw   (Replaces: 7101P077-60)				$ 7.75
4	74010825		Switch, Infinte (center)   (Replaces: 7450P024-60)				$ 81.63
4	WP74010824		Switch, Infinte (lf)   (Replaces: 7450P011-60)			Immediately	$ 112.13
4	WP7403P238-60		Switch, Infinte (lr)   (Replaces: 7403P373-60)			Immediately	$ 64.20
4	7403P992-60		Switch, Infinte (rf)		Appelez-nous	-
4	WP74008940		Switch, Infinte (rr)   (Replaces: 7403P877-60)			Immediately	$ 139.49
5	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
6	2614D131-81		Panel, Control (white)				$ 145.60
6	2614D131-09		Panel, Control (black)				$ 258.21
7	WP90767		Screw (4)   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)				$ 146.01
9	74008948		Knob (6) (black)   (Replaces: 7737P235-60)				$ 76.53
9	74008950		Knob (6) (white)   (Replaces: 7737P238-60)				$ 75.02
10	3807F601-51		Support,control Panel		Appelez-nous	-
11	3604F421-51		Shield, Control				$ 32.71
12	WP7101P309-60		Screw (12)   (Replaces: 7101P309-60)			Immediately	$ 6.95
13	7726P332-60		Endcap (white, Right)				$ 30.59
13	7726P401-60		Endcap (black, Left)				$ 23.44
13	7726P400-60		Endcap (black, Right)				$ 32.99
13	7726P333-60		Endcap (white, Left)				$ 17.04
