View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

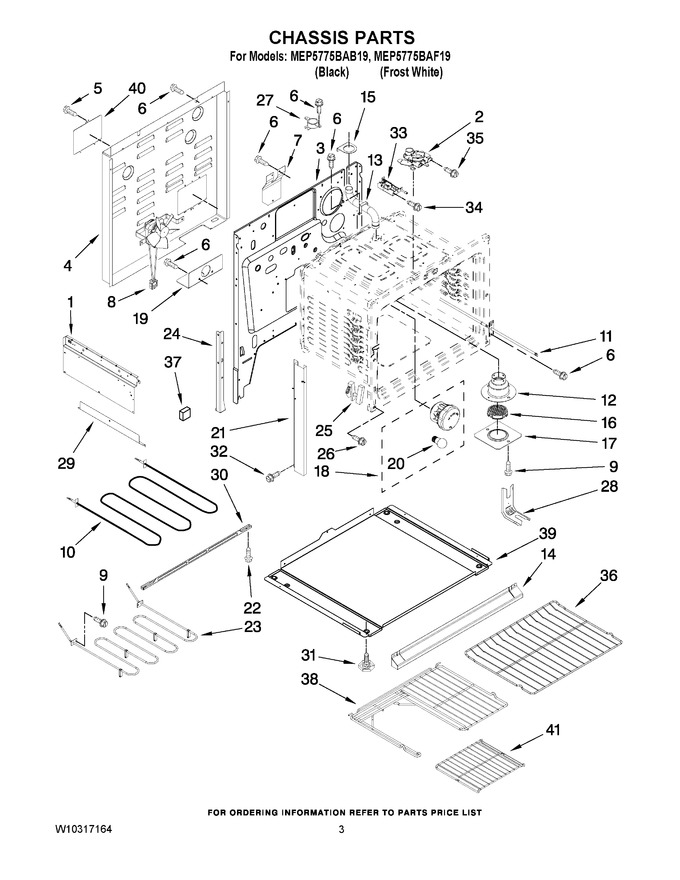

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F206-51 | Panel, Shield (right) |
|
$ 135.68 | |||||
| 1 | 2618F201-51 | Panel, Shield (left) |
|
$ 32.51 | |||||
| 2 | 74010819 | Latch Assembly (Replaces: 8002P089-60) |
|
$ 360.32 | |||||
| 3 | 3804F313-51 | Main Back |
|
- | |||||
| 4 | 4005F810-51 | Cover, Main Wire |
|
$ 248.98 | |||||
| 5 | WP4159193 | Screw (Replaces: 7101P336-60) |
|
$ 4.77 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 7 | 7003P101-60 | Insulator, Cord |
|
$ 15.60 | |||||
| 8 | WPW10586440 | Fan, Cooling (Replaces: 7427P094-60) |
|
$ 318.60 | |||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 10 | WP7406P218-60 | Element, Broil (Replaces: 7406P218-60) |
|
Immediately | $ 169.20 | ||||
| 11 | 12001656 | Sensor, Oven (Replaces: 7430P042-60) |
|
Immediately | $ 43.94 | ||||
| 12 | 8026P096-60 | Tube, Vent Lower |
|
- | |||||
| 13 | 8026P085-60 | Tube, Vent Upper |
|
- | |||||
| 14 | 3604W156-71 | Shield, Vent Lower (white) |
|
$ 67.89 | |||||
| 14 | 3604W156-70 | Shield, Vent Lower (black) |
|
- | |||||
| 15 | 3605F345-51 | Holder, Vent Tube |
|
$ 7.82 | |||||
| 16 | 8034P008-60 | Smoke Eliminator |
|
$ 25.43 | |||||
| 17 | 3605F354-45 | Plate, Smoke Eliminator |
|
$ 65.19 | |||||
| 18 | WP7407P182-60 | Light Assembly (Replaces: 7407P182-60) |
|
Immediately | $ 73.44 | ||||
| 19 | W10190166 | Bracket,pwr Supply |
|
$ 9.24 | |||||
| 20 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 21 | 3608F130-71 | Trim, Side (white, Left) |
|
- | |||||
| 21 | 3608F130-70 | Trim, Side (black, Left) |
|
- | |||||
| 21 | 3608F128-70 | Trim, Side (black, Right) |
|
- | |||||
| 21 | 3608F128-71 | Trim, Side (white, Right) |
|
$ 103.82 | |||||
| 22 | WP67006908 | Screw (2) (Replaces: 7101P626-60) |
|
Immediately | $ 7.95 | ||||
| 23 | WPW10310274 | Element, Bake (Replaces: 7406P439-60) |
|
Immediately | $ 120.66 | ||||
| 24 | 3807F732-51 | Support, Oven, Rear |
|
- | |||||
| 25 | 74011142 | Hinge (2) (Replaces: 7106P141-60) |
|
Immediately | $ 120.24 | ||||
| 26 | WP4159193 | Screw, Hinge (4) (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 27 | WP7450P034-60 | Switch, Hi-limit (Replaces: 7450P034-60) |
|
$ 217.58 | |||||
| 28 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 5.21 | ||||
| 29 | 3826F064-51 | Extention, Shield |
|
- | |||||
| 30 | 3807F494-45 | Support, Element |
|
- | |||||
| 31 | W11665456 | Leg, Leveling (Replaces: 7101P507-60) |
|
Immediately | $ 28.11 | ||||
| 32 | WP74003976 | Screw (4) (Replaces: 7101P500-60) |
|
$ 7.19 | |||||
| 33 | WP7450P108-60 | Switch, Light (Replaces: 7450P109-60) |
|
Immediately | $ 153.60 | ||||
| 34 | WPY706189 | Screw (2) (Replaces: 7101P347-60) |
|
Immediately | $ 7.19 | ||||
| 35 | W11347848 | Screw (2) (Replaces: 7101P376-60) |
|
$ 13.55 | |||||
| 36 | 7801P173-60 | Rack, Oven (2) |
|
$ 55.72 | |||||
| 37 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 38 | W10273862 | Rack, Oven (half) |
|
$ 56.22 | |||||
| 39 | 4003F067-51 | Base, Drop-in |
|
- | |||||
| 40 | 4005F612-51 | Cover, Terminal |
|
$ 46.13 | |||||
| 41 | W10275560 | Rack, Oven Half (insert) |
|
$ 69.52 | |||||
| NI | 7002P456-60 | Insulation, Wrap Insulation, Back |
|
- | |||||
| NI | 7002P445-60 | Insulation, Back |
|
- | |||||
| NI | 7002P471-60 | Insulation, Wrap |
|
- |
