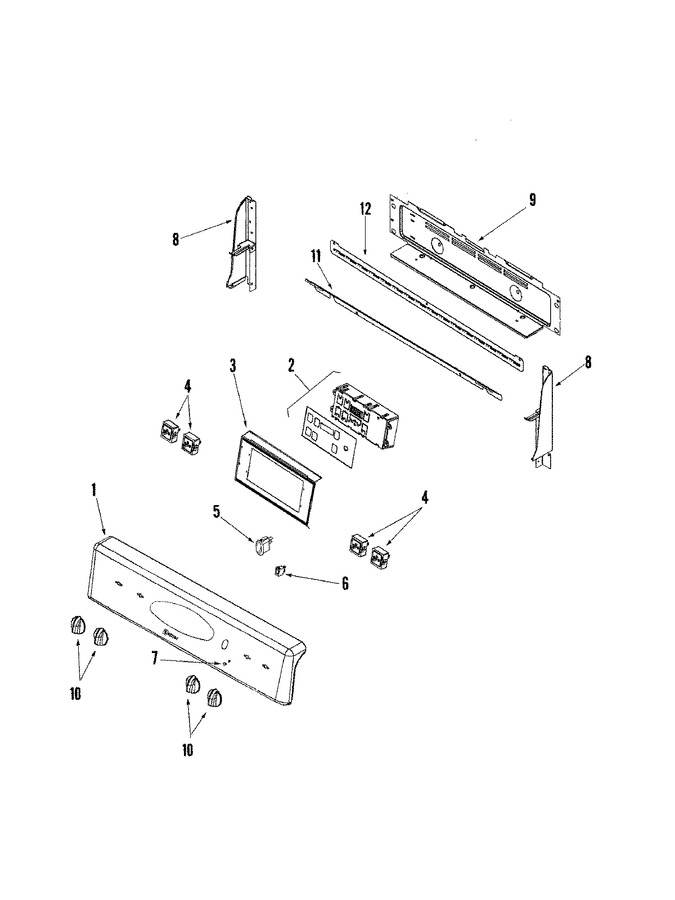

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009049		Panel, Backguard (wht)	10	Appelez-nous	-
2	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 7.55
2	5701M760-60		Clock W/overlay (wht)   (Replaces: 74009705)	10			$ 421.54
3	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 7.55
3	74009052		Bracket, Clock	10	Appelez-nous	-
3	W10124350		Not Required Part Or See Note Not Required-brckt On Panel	10	Appelez-nous	-
4	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 39.00
4	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 7.30
4	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 64.20
5	WP74010226		Switch, Rocker (wht)   (Replaces: 74008938)	10			$ 100.85
6	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.91
7	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 6.02
8	74009669		Support, Backguard (wht-lt)	10	Appelez-nous	-
8	74009672		Support, Backguard (wht-rt)	10	Appelez-nous	-
8	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 13.87
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 14.72
9	74009335		Cover, Backguard Wire	10	Appelez-nous	-
10	74009188		Knob (wht)	10			$ 39.24
11	74009701		Shield, Rear Sight	10	Appelez-nous	-
11	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 14.72
12	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 8.25
12	74009708		Shield, Wire	10	Appelez-nous	-
