Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10291024 Bowl, Drip (6`` Gry-solid)   (Replaces: 74003440) 10 In-Stock Immediately $ 55.44

1 W10291024 Bowl, Drip (6`` Gry-w/hole)   (Replaces: 74003439) 10 In-Stock Immediately $ 55.44

2 W10291024 Bowl, Drip (8`` Gry-solid)   (Replaces: 74003441) 10 In-Stock Immediately $ 55.44

3 WPW10259868 Element, Surface (6``)   (Replaces: 74007157) 10 In-Stock Immediately $ 124.76

4 WPW10345410 Element, Surface (8``)   (Replaces: 74007156) 10 In-Stock Immediately $ 193.62

5 74003371 Hinge, Main Top (rod) 10 Appelez-nous -
5 74003975 Screw (8abx3/8-blk) 10 Special Order $ 14.03

5 W10124350 Not Required Part Or See Note Hinge And Screw Not Required 13 Appelez-nous -
6 WP74004005 Screw   (Replaces: 7118P013-60) 10 Special Order $ 8.66

7 74009683 Top, Main (wht) 10 Appelez-nous -
8 74004084 Prop Rod 10 Appelez-nous -
8 W10124350 Not Required Part Or See Note 13 Appelez-nous -
9 W11189172 Glide, Main Top   (Replaces: 74004558) 10 In-Stock Immediately $ 17.61

10 12001676 Receptacle Assy. 10 In-Stock Immediately $ 31.61


    View Diagram in Separate Window     Print Icon   Print Part List

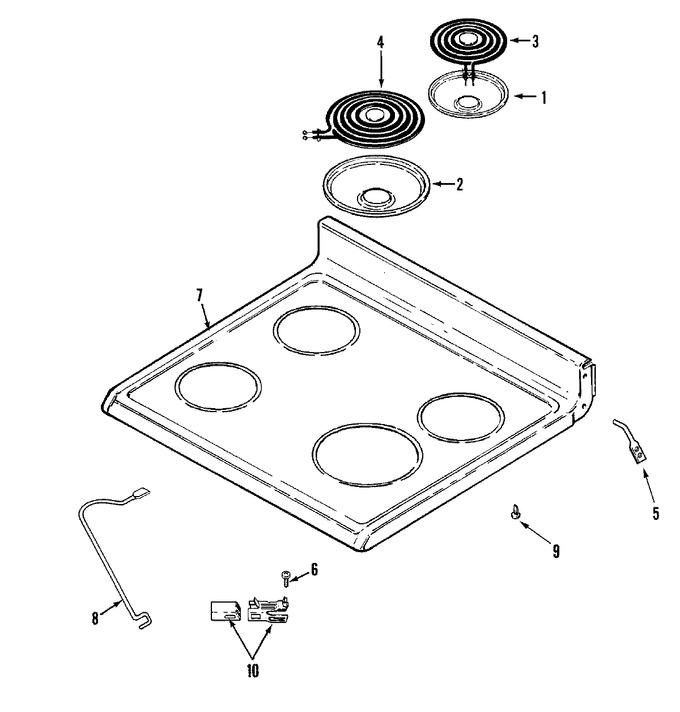

Diagram for MER5552AAW
