01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)

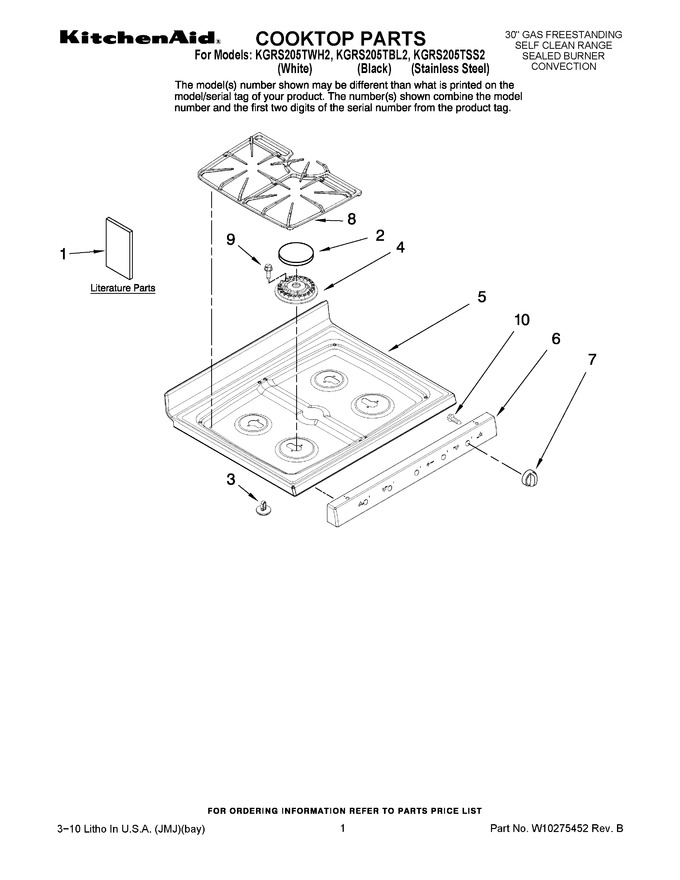

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188242		Installation Instructions		Appelez-nous	-
1	W10185364		Owners Manual		Appelez-nous	-
1	W10168001		Wiring Diagram		Appelez-nous	-
2	7504P296-60		Cap, Burner (rf) (gray)				$ 82.75
2	WP7504P298-60		Cap, Burner (ctr) (black)   (Replaces: 7504P298-60)				$ 63.24
2	WP7504P300-60		Cap, Burner (rf) (black)   (Replaces: 7504P300-60)				$ 118.47
2	WP7504P299-60		Cap, Burner (lf) (black)   (Replaces: 7504P299-60)				$ 92.25
2	7504P295-60		Cap, Burner (lf) (gray)				$ 91.97
2	W10168355		Cap, Burner (rr & Lr) (black)		Appelez-nous	-
2	W10168351		Cap, Burner (rr & Lr) (gray)		Appelez-nous	-
2	7504P294-60		Cap, Burner (ctr) (gray)				$ 69.85
3	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 8.39
4	WPW10406797		Burner (lf)   (Replaces: 8286182)				$ 88.49
4	WPW10406283		Burner (rr & Lr)   (Replaces: 7540P043-60)				$ 74.30
4	WPW10406878		Burner (rf)   (Replaces: 8286183)				$ 102.36
4	WPW10406243		Burner (ctr)   (Replaces: 8286181)			Immediately	$ 37.22
5	W10182784		Cooktop (white)				$ 193.08
5	W10182781		Cooktop (black)				$ 221.95
6	W10168241		Panel, Manifold (white)		Appelez-nous	-
6	W10168678		Panel, Manifold (stainless Steel)		Appelez-nous	-
6	W10168240		Panel, Manifold (black)		Appelez-nous	-
7	WPW10160372		Knob, Control (5) (white)   (Replaces: W10160372)				$ 32.79
7	WPW10160375		Knob, Control (5) (s.steel)   (Replaces: W10160375)				$ 40.62
7	WPW10160374		Knob, Control (5) (black)   (Replaces: W10160374)				$ 28.18
8	W10168266		Grate, Burner (2) (black)		Appelez-nous	-
8	W10168265		Grate, Burner (2) (gray)		Appelez-nous	-
9	WP3368921		Screw (8)   (Replaces: 3400701)			Immediately	$ 7.13
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
