01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

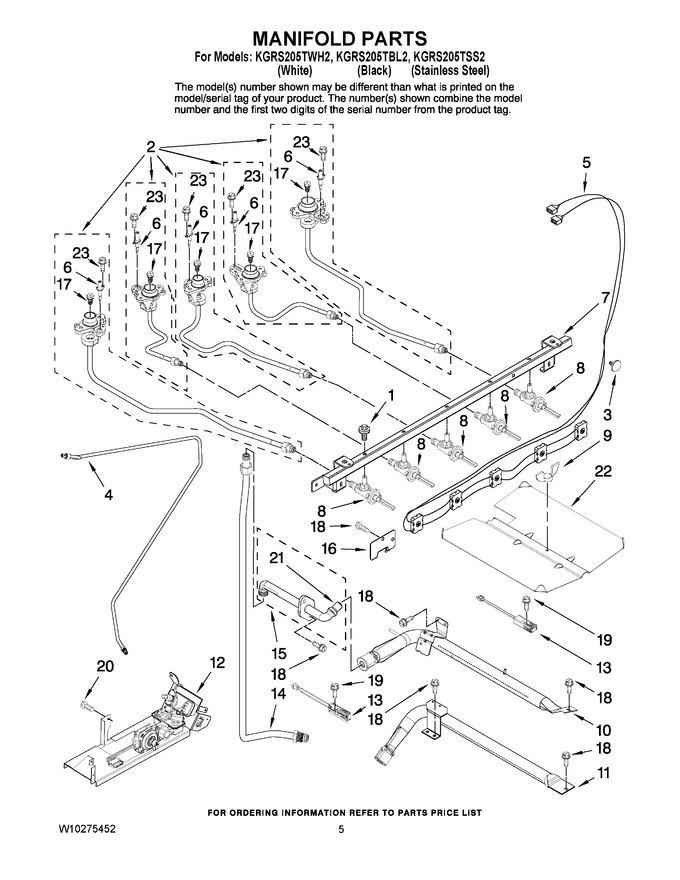

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3368921 | Screw, Valve (Replaces: 3400701) |
|
Immediately | $ 7.13 | ||||
| 2 | 7527P095-60 | Holder, Orifice (rf) |
|
- | |||||
| 2 | 7527P101-60 | Holder, Orifice (lf) |
|
- | |||||
| 2 | W10154209 | Holder, Orifice (rr) (Replaces: 7527P124-60) |
|
$ 156.00 | |||||
| 2 | 7527P097-60 | Holder, Orifice (ctr) |
|
$ 131.36 | |||||
| 2 | 7527P125-60 | Holder, Orifice (lr) |
|
$ 72.52 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.39 | |||||
| 4 | 7506P361-60 | Tubing, Main Supply |
|
- | |||||
| 5 | W10173438 | Harness, Igniter Includes Switches |
|
- | |||||
| 6 | WP74009958 | Ignitor, Top Burner (4) (Replaces: 82000311) |
|
Immediately | $ 32.05 | ||||
| 7 | 7513P524-60 | Pipe, Manifold |
|
- | |||||
| 8 | 74010751 | Valve (rf) (Replaces: 7502P501-60) |
|
$ 269.94 | |||||
| 8 | WP7502P499-60 | Valve (lf) (Replaces: 7502P499-60) |
|
$ 260.82 | |||||
| 8 | 7502P500-60 | Valve (lr/rr/ctr) |
|
$ 118.46 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 7.08 | |||||
| 10 | W10160904 | Burner, Broiler |
|
$ 200.52 | |||||
| 11 | 31945701 | Burner, Bake |
|
- | |||||
| 12 | 7501P233-60 | Valve/regulator |
|
- | |||||
| 13 | 74007498 | Igniter (bake) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 13 | 74007498 | Igniter (broil) |
|
Immediately | $ 87.11 | ||||
| 14 | 7506P357-60 | Tubing (broiler Fitting To Valve) |
|
- | |||||
| 15 | W10247148 | Fitting, Broiler |
|
$ 14.45 | |||||
| 16 | 4005F421-45 | Cover, Igniter |
|
- | |||||
| 17 | 7509P188-60 | Orifice, Burner (right Rear) |
|
- | |||||
| 17 | 7509P119-60 | Orifice, Burner (left Front) |
|
- | |||||
| 17 | 7509P121-60 | Orifice, Burner (right Front) |
|
- | |||||
| 18 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 13.55 | |||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 21 | 74008834 | Orifice (Replaces: 7507P366-60) |
|
$ 51.95 | |||||
| 22 | 3601P336-45 | Baffle, Broil Burner |
|
$ 216.28 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| NI | W10188936 | Spuds, Lp Gas (kit Of 5) |
|
- |
