Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74011777 Handle, Door   (Replaces: 7701P524-60) Special Order $ 233.67

3 7101P675-60 Screw Appelez-nous -
4 7760P186-60 Panel, Door Special Order $ 240.14

5 7902P768-60 Glass, Door Inner Appelez-nous -
6 7902P752-60 Glass, Door Outer Appelez-nous -
7 3801F886-51 Bracket, Glass Special Order $ 38.25

8 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 13.55

9 7002P246-60 Insulation, Door Special Order $ 58.49

10 74003645 Glass, Inner   (Replaces: 7902P436-60) In-Stock Immediately $ 180.59

11 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 10.53

12 WP74001574 Nut, Snap   (Replaces: 7103P141-60) In-Stock Immediately $ 11.01

13 2402W312-19 Lining, Door Special Order $ 144.50

14 WPW10162384 Seal, Door   (Replaces: W10162384) In-Stock Immediately $ 86.23

15 3601F373-51 Retainer Special Order $ 271.36


    View Diagram in Separate Window     Print Icon   Print Part List

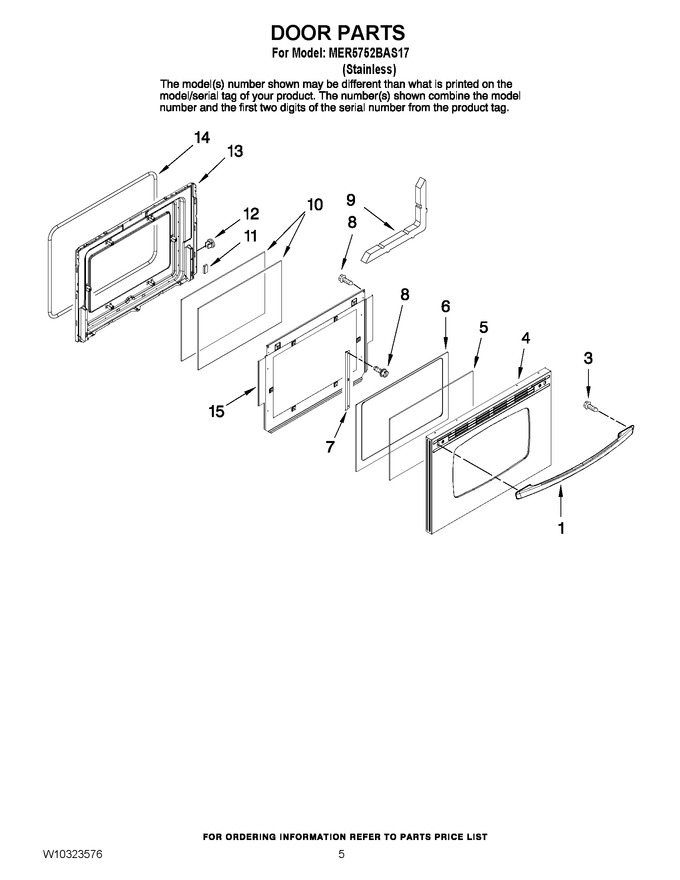

Diagram for MER5752BAS17
