Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10282492 Rack, Oven   (Replaces: 7801P054-60) In-Stock Immediately $ 72.39

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 338.87

3 WP7101P072-60 Screw   (Replaces: 7101P072-60) Special Order $ 7.52

4 3801F887-51 Bracket, Drawer Special Order $ 8.32

5 W10174859 Panel, Drawer Appelez-nous -
6 WP98008545 Screw, Panel   (Replaces: 7101P633-60) Special Order $ 17.71

7 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.44

8 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 10.53

9 7118P032-60 Shaft, Roller Appelez-nous -
10 7118P032-60 Roller, Drawer Appelez-nous -
11 WP488130 Nut, Lock   (Replaces: 7103P082-60) Special Order $ 6.97

12 W10180296 Handle, Drawer Special Order $ 99.76

13 W11233072 Screw   (Replaces: 7101P638-60) In-Stock Immediately $ 14.02

14 2404F030-51 Lining, Drawer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

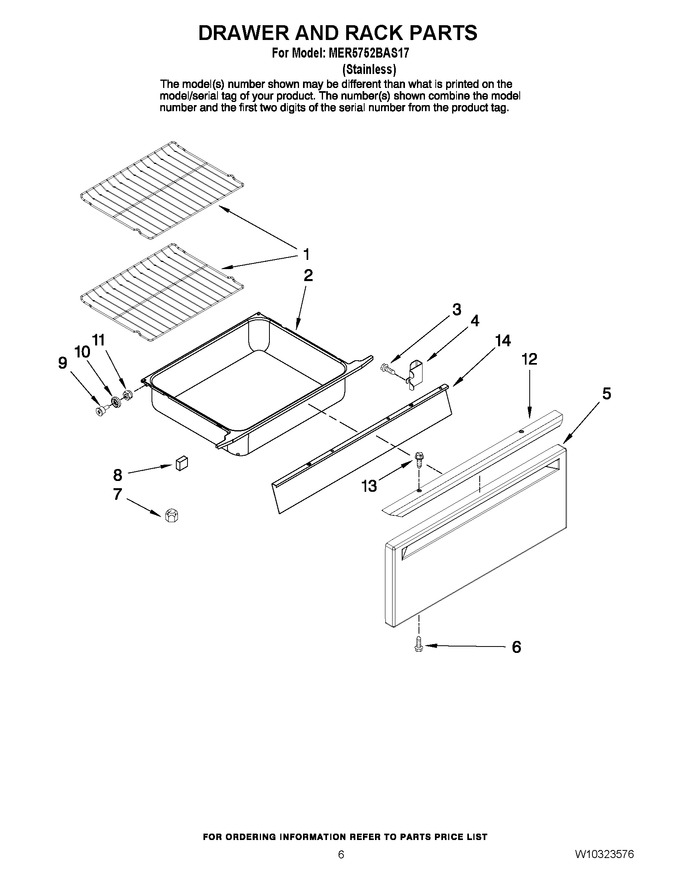

Diagram for MER5752BAS17
