SELECT A DIAGRAM

01 - Cooktop Parts

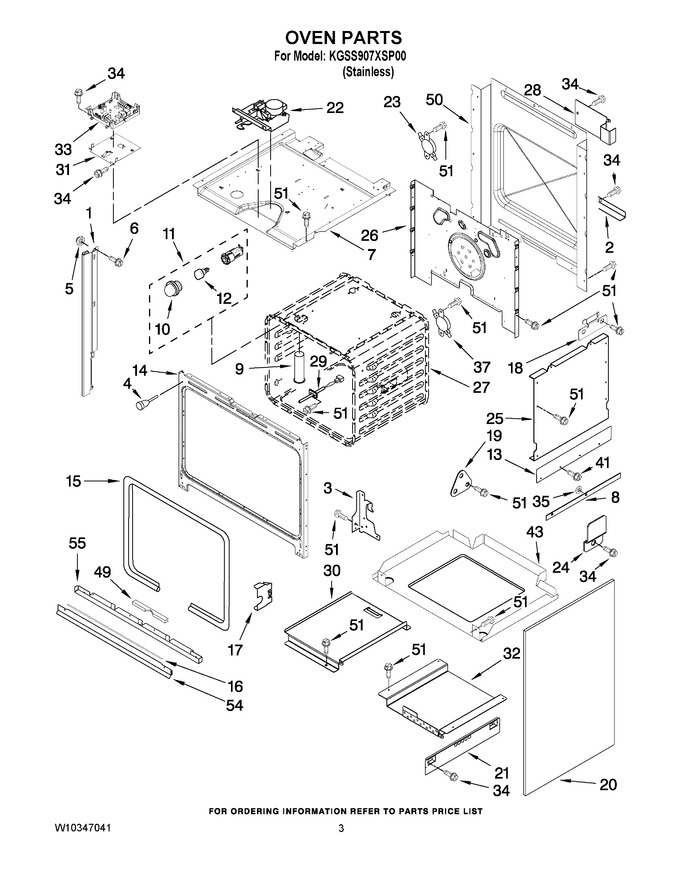

02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Triple Crown Burner


09 - Control Panel Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140548		Trim, Side Right (stainless)				$ 37.10
1	W10140547		Trim, Side Left (stainless)				$ 20.43
2	8053971		Brace, Main Back				$ 7.82
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door				$ 7.41
5	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
7	8303099		Top Chassis				$ 70.97
8	9759722		Insulation, Body Side Trim				$ 33.40
9	9761666		Tube, Vent		Appelez-nous	-
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	9757732		Shield, Heat		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
16	W10116195		Gasket, Vent Shield				$ 77.94
17	4452152		Bracket, Mounting				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	9757461		Bracket,side Panel				$ 37.11
20	W10281880		Oven, Side Panel (black)		Appelez-nous	-
21	9757811		Brace, Side Panel		Appelez-nous	-
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
23	WP9757807		Thermostat   (Replaces: 9757807)			Immediately	$ 112.22
24	9759890		Clip, Side Panel				$ 9.71
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	9759762		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	9759945		Standoff, Rear				$ 58.51
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	9756454		Bracket, Goc				$ 68.50
31	9760223		Slide, Dsi				$ 8.06
32	W10083460		Slide, Goc		Appelez-nous	-
33	9762774		Central, Appliance				$ 373.91
34	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
35	9760481		Washer, Insulation Body Side Trim		Appelez-nous	-
37	WP9759242		Thermostat (tod)   (Replaces: 9759242)			Immediately	$ 85.57
41	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
43	W10110534		Base, Chassis				$ 138.23
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	9758583		Cover, Back				$ 215.30
51	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	W10160347		Vent, Bottom Upper (stainless)				$ 69.48
55	W10154789		Trim, Bottom Vent (stainless)				$ 97.50
NI	9756817		Insulation, Wrap				$ 76.03
NI	9756470		Insulation, Back				$ 68.08
NI	W10095410		Insulation Cover, Back Top		Appelez-nous	-
NI	W10095400		Insulation Cover, Back Side		Appelez-nous	-
NI	WP7101P246-60		Screw   (Replaces: W10143304)				$ 8.24

    View Diagram in Separate Window       Print Part List
